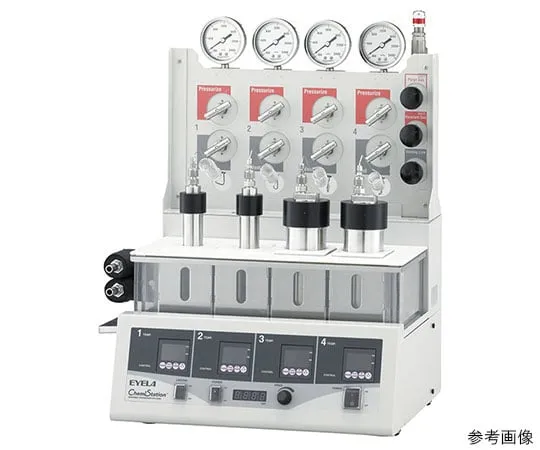

Spec

• Ferromagnetic magnetic stirrer
• Maximum working pressure: Less than 1 MPa (when using compressed gas), less than 0.2 MPa (when using liquefied gas, acetylene gas, etc.), 5 MPa (A separate dedicated part is required for the autoclave reaction.)
• Reaction vessel/number: Pressure-resistant vessel/1 ~ 4
• Synthetic scale: phi 30: 14 mL (Internal volume 42 mL, no temperature sensor protective tube)
• Temperature control range (aluminum block temperature): - 10 ~ 200 C (individual temperature control x 4) * A cooling water circulator is required.
• Rotational speed range (same rotational speed x 4): 50 ~ 1500 rpm (with 14 mL of water)
• Temperature setting and display: Sheet key input and digital display (- 40.0 ~ 200.0 C)
• Stirring setting and display: Volume setting and digital display (0 ~ 2000 rpm)
• Pressure display: Burdon tube pressure gauges are installed in each vessel indep***ently
• Gas replacement: With needle valve (Gas introduction 2 systems, exhaust 1 system), by exhaust and inert gas introduction. Leak testable
• Gas Pressurization/Decompression/Control: Individual pressure control x 4 (fine adjustment by needle valve)
• Reagent addition method: Addition and exhaust of gas reactants, up to 5 mL of liquid reactants under pressure (optional)
• Temperature measurement: Pressure vessel equipped with temperature sensor protective tube and aluminum block temperature equipped with temperature sensor insertion hole
• Pressure measurement: Measuring with a pressure transmitter (optional)
• Safety features: Relief features: Pressure-side relief valve (relief pressure: 0.95 Mpa), Options: Individual relief valve (0.34 ~ 2.41 MPa, 2.41 ~ 5.16 MPa), Gas backflow prevention: Check valve installed at each gas inlet (cracking pressure: 70 kPa), Air barge port in electrical section (non-explosion-proof structure), Antistatic feature, Self-diagnostic feature, Double chamber, dew receiving tray, Motor overload protection, Temperature f***
• Cooling water connection diameter: 12 mm outer diameter hose mouth, for silicon hose, phi 9 x 13 mm
• Wetted part materials: SUS 316, Perflo (R) (O-ring), glass, Teflon (R) (inner container), fluorocarbon (relief valve seal)
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions: 475 x 421 x 590 mm
• Weight: 34 kg
• Power input/voltage: 13 A, 1300 VA/AC 100 V 50/60 Hz
• *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
• *Maximum working pressure is not subject to the High Pressure Gas Safety Act.
• *Accessories: High-pressure manifold panel: spiral hose for gas inlet (2), flexible hose for exhaust outlet (1), spanner (1), pin spanner (1), bar (1), temperature control and stirring section: f*** (2)
• Code: 229990
