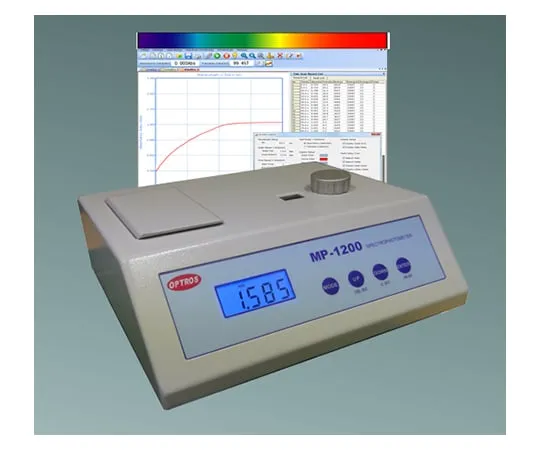

63-1267-54-22 Smart spectrophotometer with Pre-shipment Inspection Document MP-1200
Product Description
Product Model: 63-1267-54-22Product Brand: SEIKOHSYA Fe […]
Contact Us
Product Details
Product Model: 63-1267-54-22
Product Brand: SEIKOHSYA
Features
- The cell ***d for measurement can be a standard square cell or a normal test tube (outside diameter Φ12/16.5~18 mm).
- Large LCD backlight display for easy viewing
- The optional software can be connected to the PC to measure the sample concentration with high precision without linearity.
- You can save and edit density calibration curves and measurement data.
- The measurement items are not only ABS absorbance,% T transmittance, and CONC factor value input, but also real-time graphing by control KineTech measurement from the PC side, and each measurement value can be displayed, saved, and edited.
- The calibration curve for determining the concentration value can be selected from three types of Piecewise line, Linear temporary regression (C=a+bA) and Quadratic quadratic regression (C=a+bA+cA2), and the calibration curve can be automatically generated even for non-linear samples and displayed graphically.
- Since the calibration curve can be memorized, the concentration value of the sample can be measured, displayed, saved and edited immediately by calling up the item to be measured from the next time.
- Saved data can be converted to text or Excel format for editing and saving.
Spec
- Wavelength setting range: 340~1000 nm
- Wavelength accuracy: ±2 nm
- Wavelength reproducibility: ≤1.0 nm
- Wavelength: 6 nm
- Photometric accuracy: +/- 2T%
- Diffraction Grating: 1200/mm
- Transmittance repeatability: ≤0.5T%
- Stray light: ≤1.0T%
- Detector: High Sensitivity Silicon Photocell
- Light source: High intensity halogen lamps (6 V, 10 W)
- Spectrometer: Grayting (1200/mm)
- Measurement Range: Absorbance/-0.301 - +3.000, Transmittance/0.0~200.0T%, Concentration/0.000~2000 C (mg/dl, mg/l, g/l, ppm, M)
- Available Test Tube Dimensions
- Diameter φ16.5~18 mm x Length 55~160 mm
- *When using the supplied common adapter
- Square Cell Width 10 mm x Depth 10 mm x Length 45~150 mm
- Test Tube Diameter φ12 x Length 55~150 mm
- Display: 65 x 26 mm 4 1/2 LCD
- Power: 100~220 VAC 50~60 Hz (±10%)
- Power: 25 W
- F***: 1A
- Interface: PC-USB
- Dimensions: L320 x W290 x H120mm
- Weight: 4.2 kg
- Accessories: User's Manual, Power Cord, Dustproof Cover Light Shielding Cap, Glass Square Cell x 2, F*** 1A
- Product Code: 32-5000
- Inspection items: confirmation of baseline, wavelength accuracy, and 50% transmittance
