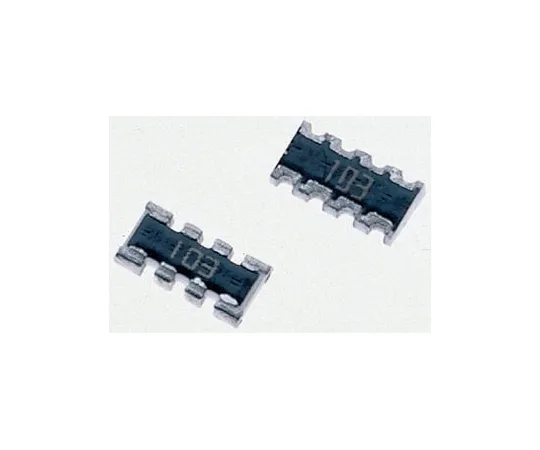

63-5044-77 Bourns CAY16 Series 10kΩ ±1% Isolated SMT Resistor Array, 4 Resistors, 0.25W total 1206 (3216M) package Convex CAY16-1002F4LF
Product Description
Product Model: 63-5044-77Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5044-77
Product Brand: Bourns
Features
- CAY16 Series Convex Chip Resistor Arrays. Bourns CAY 16 Series Chip Resistor Arrays available with either 4 or 8 isolated elements. Convex terminals Resistance tolerance ±1 % and ±5 % Resistance range: 10 ohms to 1 megohm
Spec
- Quantity：1bag(5pieces)
- Resistance : 10kΩ
- Number of Resistors : 4
- Package/Case : 1206 (3216M)
- Power Rating : 0.25W
- Termination Style : Convex
- Tolerance : ±1%
- Case Style : Moulded
- Power Rating per Resistor : 0.062W
- Circuit Designator : ISOL
- Length : 3.2mm
- Depth : 1.6mm
- Height : 0.5mm
- Dimensions : 3.2 x 1.6 x 0.5mm
- Series : CAY16
- Temperature Coefficient : ±200ppm/°C
- CODE No.:740-8767
