Features

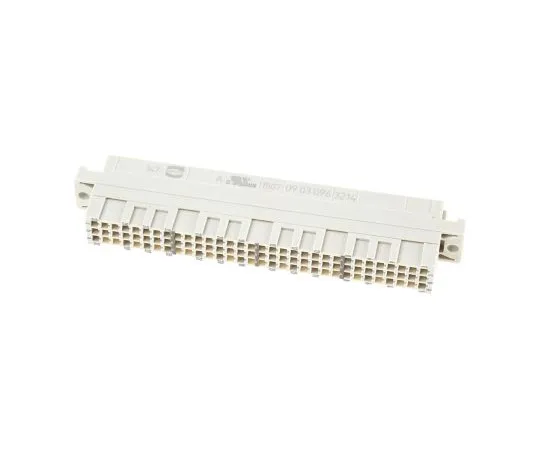

• Harting DIN41612 Type C Backplane Signal Connector
• The Harting DIN41612 Type C backplane signal connector is designed for board connections.
• The DIN41612 substrate backplane signal connector provides an economical solution for many electronic signal connector design applications with excellent cyclic life, abrasion resistance and high durability.
• The first engagement positions are a1 and a31.
• Product number; 757-7951 757-7951,; 757-7945 757-7945,; 757-7970 757-7970,; 757-7936 757-7936,; 757-7954 757-7954,; 757-7926 757-7926,; 757-7995 757-7995,; 757-7998 757-7998,; 757-7967 757-7967,; 757-7958 757-7958 is approved for railway applications under the Railway Classification NFF16-101, Smoke Index F1 and Flame Retardant Grade I2.
• Operating temperature range: -55→+125°C. Test voltage: 1 kV Contact resistance: 20 MΩ or less Thermoplastic-glass fiber copper alloy contacts Initial engagement positions: a1 and a31 4.5 mm connectors (RS; 406-284 406-284), 13 mm connector (RS; 740-6723 740-6723)
