63-5044-02 Amphenol USB-A Field Series, Cable Mount, Version Type A Type A USB Connector, Receptacle USBAPSCC2210A
Product Description
Product Model: 63-5044-02Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-5044-02
Product Brand: Amphenol
Features

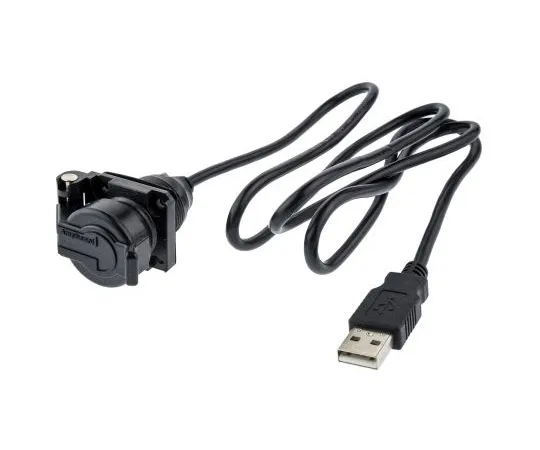

- For IP67 USB-A Cable Assemblies see stock number ; 739-8581 739-8581 typical. USB-A Square Flange Receptacles. These Amphenol USB-A Square Flange Receptacles have a self closing cap that provides IP54 protection when alone, the protection is increased to IP67 when an appropriate USB-A cable assembly is connected. The USB_A Receptacle has either a rear USB-A Receptacle or a cordset with a standard USB-A Plug. A Panel Gasket is also included with this these USB-A Square Flange Receptacles.
Spec
- Quantity：1piece
- G***er : Female
- Mounting Type : Cable Mount
- Termination Method : Cable
- USB Version : Type A
- Body Orientation : Straight
- Number of Ports : 1
- Series : USB-A Field
- Contact Material : Phosphor Bronze
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- CODE No.:739-8569
