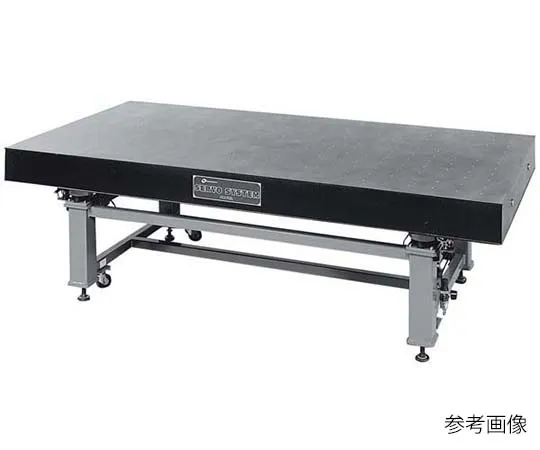

62-9897-53 Precision Vibration Isolation Table Air Spring Type Economy Type (1200 x 900 x 770) ORE-1290
Product Description
Product Model: 62-9897-53Product Brand: CHUO PRECISION […]
Contact Us
Product Details
Product Model: 62-9897-53
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.
Features
- It is an economy type that reduces the number of processes and the number of parts to reduce the production cost as much as possible.
- The air spring adopts a variable orifice, and the natural frequency and damping can be freely adjusted according to the arrangement and mass of the mounted equipment.
Spec
- Dimensions: width 1,200 mm x depth 900 mm x height 770 mm
- Mass: 190 kg
- Loadable mass: 200 kg
- Natural Frequency: Horizontal/Approx. 1.8 Hz, Vertical/Approx. 1.5 Hz
- Surface: Stainless Steel (SUS430), 50 mm Pitch M6 with Tap Holes
