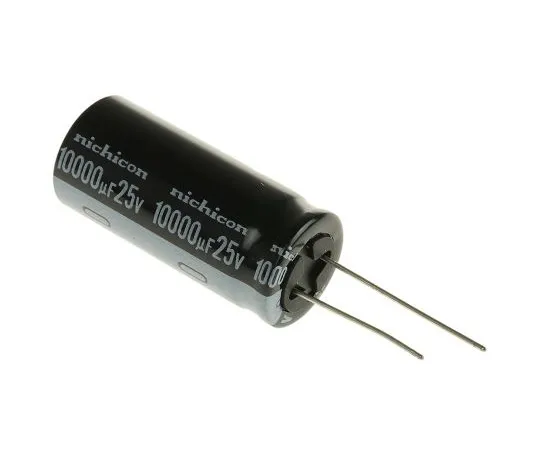

63-5043-13 Nichicon 10000μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 18 (Dia.) x 40mm +105°C 18mm 7.5mm UVY1E103MHD
Product Description
Product Model: 63-5043-13Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5043-13
Product Brand: NICHICON
Features
- Nichicon VY Series General Purpose Electrolytic Capacitors. Nichicon VY series aluminium electrolytic capacitors are miniature sized, low impedance, high reliability capacitors for switching power supplies. Features ; Benefits:. Lifetime rating of 1000 hours @ 105°C. High ripple current and temperature range
Spec
- Quantity：1piece
- Capacitance : 10000µF
- Voltage : 25V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 18 (Dia.) x 40mm
- Height : 40mm
- Minimum Operating Temperature : -55°C
- Diameter : 18mm
- Maximum Operating Temperature : +105°C
- Lifetime : 1000h
- Series : VY
- Leakage Current : 7500 μA
- CODE No.:739-5295
