Electronic/Electrical Parts and Controll Equipments

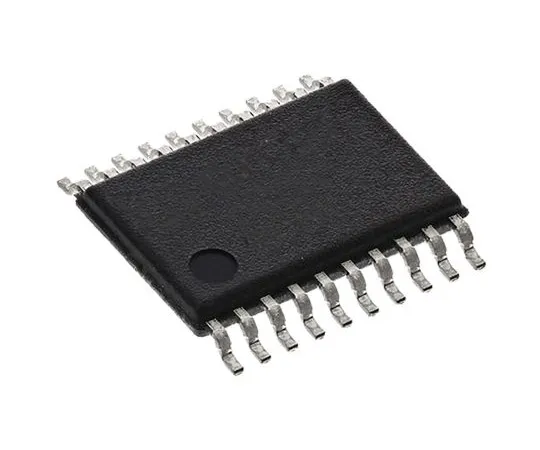

63-5042-89 ON Semiconductor 74LCX244MTCX Octal-Channel Buffer & Line Driver, 3-State, 20-Pin TSSOP 74LCX244MTCX
model:
63-5042-89
brand:
ON Semiconductor
Product Description
Product Model: 63-5042-89Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5042-89
Product Brand: ON Semiconductor
Features
- 74LCX Family, Fairchild Semiconductor. Advanced High-Speed (low-voltage) CMOS Logic Operating Voltage Range: 2.0 to 3.6V 5V tolerant inputs & outputs
Spec
- Quantity：1set(5pieces)
- Logic Family : 74LCX
- Logic Function : Buffer, Line Driver
- Number of Channels per Chip : 8
- Input Type : Single Ended
- Output Type : 3 State
- Polarity : Non-Inverting
- Mounting Type : Surface Mount
- Package Type : TSSOP
- Pin Count : 20
- Maximum High Level Output Current : -24mA
- Maximum Low Level Output Current : 24mA
- Maximum Propagation Delay Time @ Maximum CL : 7.5ns
- Dimensions : 6.5 x 4.4 x 0.9mm
- Height : 0.9mm
- Minimum Operating Temperature : -40 °C
- CODE No.:739-5184
