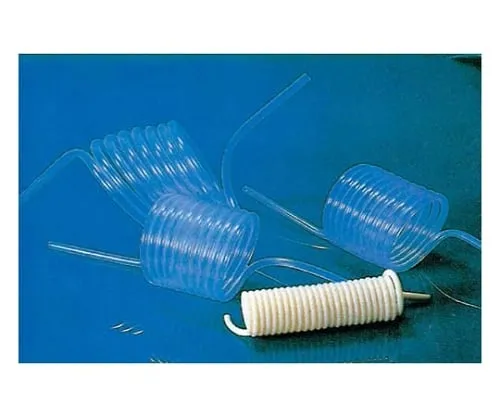

61-4398-94 PFA Coil Tube PFA-42 F-8024-01
Product Description
Product Model: 61-4398-94Product Brand: FLON INDUSTRY F […]
Contact Us
Product Details
Product Model: 61-4398-94
Product Brand: FLON INDUSTRY
Features
- Fluoroplastic coil tubing is ideal for joint piping when the length of the experimental device is not sufficient during assembly or while the device is moving from a fixed position.
- Use a joint made of PFA/PTFE or a connection made of stainless steel for connecting to the fluororesin coil tube.
- The coil tube is made of fluorine resin, so it has excellent chemical resistance, heat resistance, durability, and weather resistance.
- Dimensions other than the table and the number of rolls can be produced separately.
Spec
- Outer diameter (mm): 4φ
- Inner diameter (mm): 2φ
- Coil outer diameter (mm): About 30φ
- Number of turns: 20
- Coil solid length (mm): 90
- Overall length of tube (m): 1.9
- Elongation range (mm): 400
- Applicable joint: for 4φ
