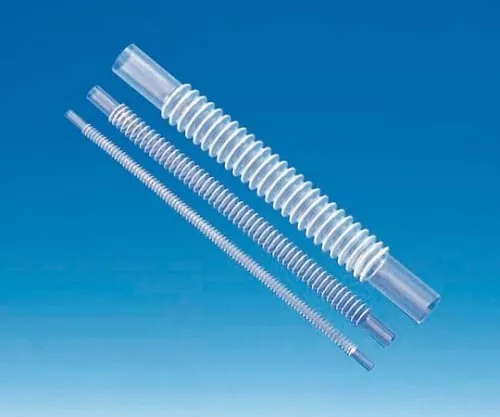

61-4398-65 PFA Flexible Tube PFA-5.9 1 Feet F-8016-01
Product Description
Product Model: 61-4398-65Product Brand: FLON INDUSTRY F […]
Contact Us
Product Details
Product Model: 61-4398-65
Product Brand: FLON INDUSTRY
Features
- Stretchable at a ratio of about 30% of the flexible portion.
- The inner diameter does not change when bent. (The b*** radius is about 1/4 of the inner diameter.)
- Can be ***d under vacuum (10-3 Torr).
- Use the PFA flexible tube in the arrow direction beca*** it is designed to allow fluid to flow easily and not leave fluid in the middle corrugated area.
Spec
- Total length (mm): 305
- Nominal diameter: 1/4 ′ (Straight End inner diameter: 6.0 mm Thickness 0.41 outer diameter 6.82 Length 19 mm)
- Waveform portion outer diameter (mm): 9.4
- Minimum b*** radius (mm): 1.6
- Maximum temperature: 150 ° C
- Total length includes 1 ft, 1.5 ft, 2 ft, 2.5 ft, 3 ft, 3.5 ft, 4 ft, 5 ft, 6 ft, 7 ft, 8 ft, 10 ft, 12 ft
- * This product is 1 foot long, about 305 mm standards . Please contact us for more than 2 feet.
