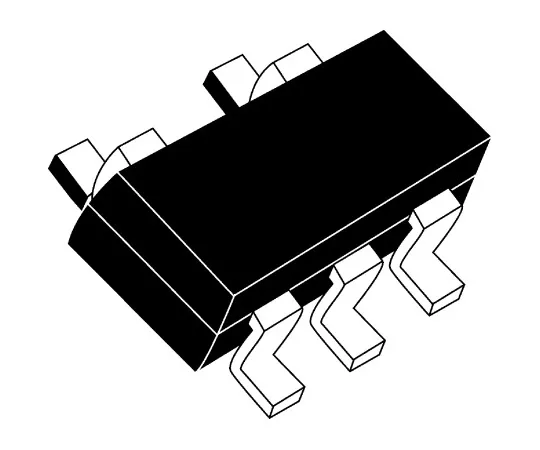

63-5039-24 LMV321WG-7 DiodesZetex, Low Voltage, Op Amp, RRO, 1MHz, 2.7 → 5.5 V, 5-Pin SOT-25 LMV321WG-7
Product Description
Product Model: 63-5039-24Product Brand: DiodesZetex Fea […]
Contact Us
Product Details
Product Model: 63-5039-24
Product Brand: DiodesZetex
Features
- Operational Amplifiers at 5 V max. Supply Voltage, Diodes Inc. Diodes operational amplifier range provides Industry standard parts for general purpose applications.
Spec
- Quantity：1set(25pieces)
- Amplifier Type : Low Voltage
- Mounting Type : Surface Mount
- Package Type : SOT-25
- Power Supply Type : Single
- Number of Channels per Chip : 1
- Pin Count : 5
- Typical Single Supply Voltage : 2.7 → 5.5 V
- Typical Gain Bandwidth Product : 1MHz
- Typical Slew Rate : 1V/µs
- Maximum Operating Temperature : +85 °C
- Typical Input Voltage Noise Density : 23nV/√Hz
- CODE No.:738-5305
