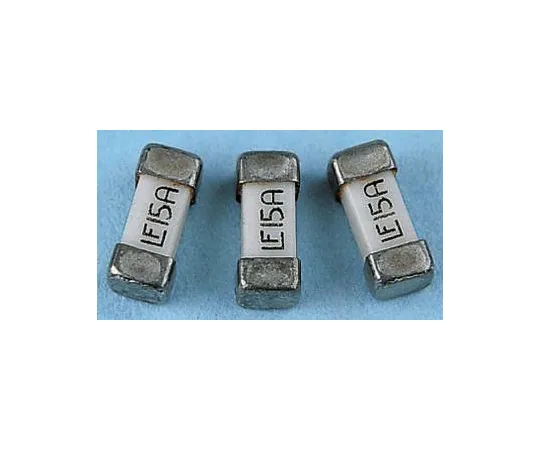

63-5038-62 Littelf*** 750mA T Non-Resettable Surface Mount F***, 125V 0452.750MRL
Product Description
Product Model: 63-5038-62Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5038-62
Product Brand: Littelfuse
Features
- CSA, UL. Littelf*** 452 Series NANO ;sup>2 ;/sup> Surface Mount F***s. Littelf*** 452 series of NANO ;sup>2 ;/sup> surface mount f***s feature an enhanced inrush withstand characteristic that ****s solve the problem of nuisance 'opening' by accommodating inrush currents that normally ca*** a fast-acting f*** to open. The 452 series of NANO ;sup>2 ;/sup> surface mount f***s are suitable for a wide range of applications. Time-lag Small size Low temperature de-rating
Spec
- Quantity：1bag(10pieces)
- Current Rating : 750mA
- Voltage Rating : 125V
- Length : 6.1mm
- Width : 2.69mm
- Height : 2.69mm
- Dimensions : 6.1 x 2.69 x 2.69mm
- F*** Speed : T
- Body Material : Ceramic
- Breaking Capacity at Maximum Voltage Rating : 300 A @ 32 V dc, 50 A @ 125 V ac/dc
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Terminal Material : Gold Plated
- Operating Temperature Range : -55 to +125 °C
- CODE No.:738-2835
