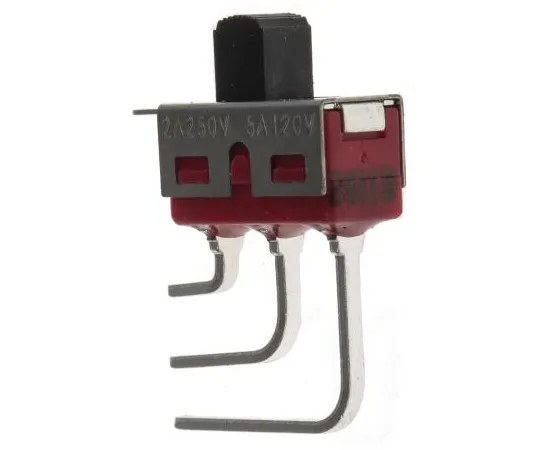

63-5036-34 PCB Slide Switch Single Pole Double Throw (SPDT) Latching 5 A @ 28 V dc Slide 734-7306
Product Description
Product Model: 63-5036-34Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5036-34
Product Brand: RS PRO
Features
- RS - Miniature Slide Switches. Suitable for wave soldering at 260ºC for 5 seconds Black nylon actuator, DAP case and stainless steel housing Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Spec
- Quantity：1piece
- Contact Configuration : Single Pole Double Throw (SPDT)
- Mounting Type : PCB
- Switch Operation : Latching
- Contact Current Rating : 5 A @ 28 V dc
- Terminal Type : Through Hole
- Actuator Type : Slide
- Length : 12.7mm
- Width : 6.6mm
- Depth : 6.7mm
- Dimensions : 12.7 x 6.6 x 6.7mm
- Contact Resistance : 10mΩ
- Mechanical Life : 30000Cycles
- Maximum Operating Temperature : +85°C
- CODE No.:734-7306
