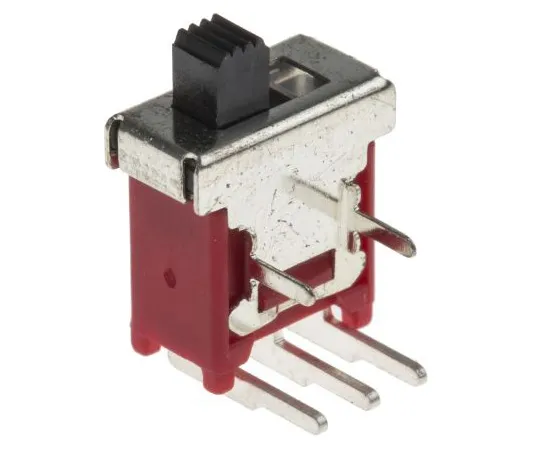

63-5036-29 PCB Slide Switch Single Pole Double Throw (SPDT) On-Off-On 3 A @ 120 V ac Side 734-7277
Product Description
Product Model: 63-5036-29Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5036-29
Product Brand: RS PRO
Features
- RS - Ultra Miniature Slide Switches. Suitable for wave soldering at 260ºC for 5 seconds Black nylon actuator, DAP case and tin plated brass housing Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Spec
- Quantity：1piece
- Contact Configuration : Single Pole Double Throw (SPDT)
- Mounting Type : PCB
- Switch Operation : On-Off-On
- Contact Current Rating : 3 A @ 120 V ac
- Terminal Type : Through Hole
- Actuator Type : Side
- Length : 10.16mm
- Width : 5.08mm
- Depth : 10.03mm
- Dimensions : 10.16 x 5.08 x 10.03mm
- Contact Resistance : 20mΩ
- Mechanical Life : 30000Cycles
- Operating Temperature Range : -30 → +85°C
- CODE No.:734-7277
