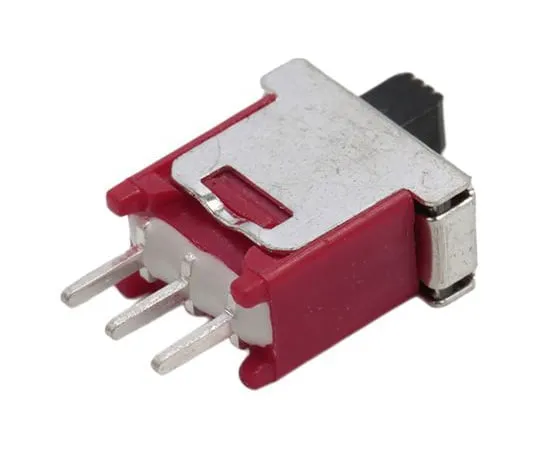

63-5036-24 PCB Slide Switch Single Pole Double Throw (SPDT) Latching 3 A @ 120 V ac Top 734-7261
Product Description
Product Model: 63-5036-24Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5036-24
Product Brand: RS PRO
Features
- RS - Ultra Miniature Slide Switches. Suitable for wave soldering at 260ºC for 5 seconds Black nylon actuator, DAP case and tin plated brass housing Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Spec
- Quantity：1piece
- Contact Configuration : Single Pole Double Throw (SPDT)
- Mounting Type : PCB
- Switch Operation : Latching
- Contact Current Rating : 3 A @ 120 V ac
- Terminal Type : Through Hole
- Actuator Type : Top
- Length : 10.16mm
- Width : 5.08mm
- Depth : 9.2mm
- Dimensions : 10.16 x 5.08 x 9.2mm
- Contact Resistance : 20mΩ
- Mechanical Life : 30000Cycles
- Voltage Rating : 120V ac
- CODE No.:734-7261
