Electronic/Electrical Parts and Controll Equipments

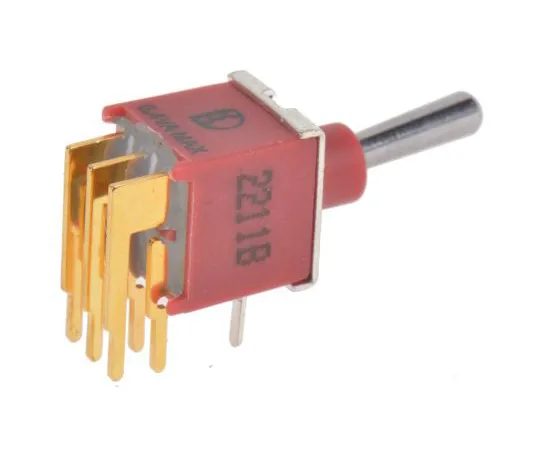

63-5035-98 RS PRO Double Pole Double Throw (DPDT) Toggle Switch, Latching, IP67, PCB 734-7157
Product Description
Product Model: 63-5035-98Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5035-98
Product Brand: RS PRO
Features
- IP67 Sealed Sub-Miniature Toggle Switches - RS Series. RS series of IP67 sealed sub-miniature toggle switches with a low contact resistance and are available with either Gold (Q) or Silver (R) contact material. The RS series sub-miniature toggle switches have a minimum insulation resistance of 1000MΩ 500V and a minimum dielectric strength of 1000 Vrms at sea level.
Spec
- Quantity：1piece
- Contact Configuration : Double Pole Double Throw (DPDT)
- Switch Operation : Latching
- Contact Current Rating : 400 mA @ 20 V
- Mounting Type : PCB
- Terminal Type : Through Hole
- IP Rating : IP67
- Actuator Length : 10.16mm
- Actuator Material : Chromium Plated Brass
- Contact Resistance : 20mΩ
- Standards Met : RoHS & Lead Free
- CODE No.:734-7157
