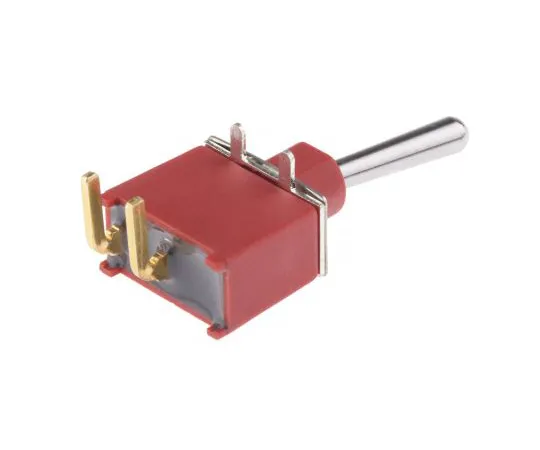

63-5035-59 RS PRO Single Pole Double Throw (SPDT) Toggle Switch, Latching, IP67, Through Hole 734-6990
Product Description
Product Model: 63-5035-59Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5035-59
Product Brand: RS PRO
Features
- IP67 Sealed Miniature Toggle Switches - RS Series. IP67 rated RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (Q) or Silver (R) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms at sea level.
Spec
- Quantity：1piece
- Contact Configuration : Single Pole Double Throw (SPDT)
- Switch Operation : Latching
- Contact Current Rating : 5 A @ 250 V ac
- Mounting Type : Through Hole
- Terminal Type : Right Angle Through Hole
- IP Rating : IP67
- Panel Cut Out Width : 6.6mm
- Panel Cut Out Height : 12.7mm
- Actuator Length : 12.7mm
- Actuator Material : Chrome Plated Brass
- Contact Resistance : 10mΩ
- Maximum Operating Temperature : +85°C
- CODE No.:734-6990
