Electronic/Electrical Parts and Controll Equipments

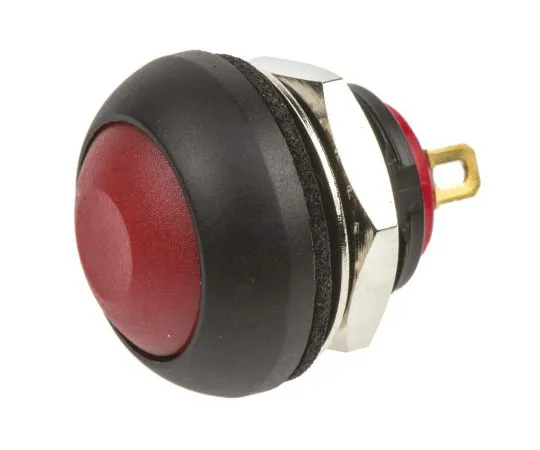

63-5035-30 RS PRO 1NC Momentary Miniature Push Button Switch, IP67, 13.6 (Dia.)mm, Panel Mount, 32/50/125V ac 734-6710
Product Description
Product Model: 63-5035-30Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5035-30
Product Brand: RS PRO
Features
- Sub-Miniature Push Button Switches. Push button switches available with threaded bushing or snap in panel mounting. Operating force: 2N - 5N Contact bounce: 10 ms Mechanical life: 1000000 cycles Soldering: 350°C maximum for 5 seconds
Spec
- Quantity：1piece
- Switch Operation : Momentary
- Mounting Type : Panel Mount
- Illuminated : No
- Contact Configuration : 1NC
- Panel Cut Out Size : 13.6 (Dia.)mm
- Panel Cut Out Diameter : 13.6mm
- IP Rating : IP67
- Actuator Colour : Red
- Voltage Rating : 32/50/125V ac
- Contact Current Rating : 400 mA @ 32 V ac
- Actuator Shape : Dome
- Terminal Type : Solder
- Case Colour : Black
- CODE No.:734-6710
