63-5035-19 Binder 711 Series Subminiature Cable Mount Connector, 8 contacts Plug 99-0479-100-08
Product Description
Product Model: 63-5035-19Product Brand: Binder Features […]
Contact Us
Product Details
Product Model: 63-5035-19
Product Brand: Binder
Features

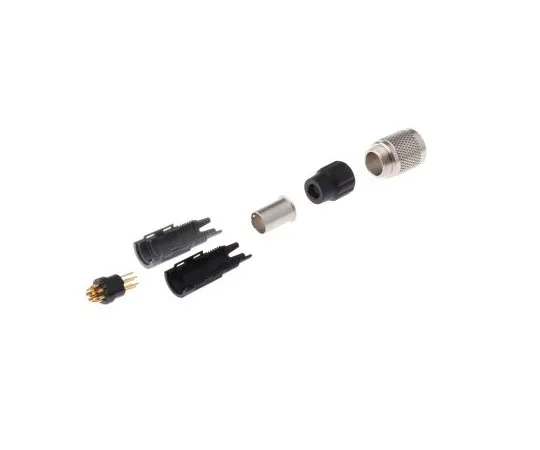

- For dimension information, please refer to the ‘Technical Specification ‘ table below. Subminiature Connector, Male Cable Connector, M9, IP40 - Series 711. Series 711, M9, male cable connector, subminiature connector with screw locking and IP40 ingress protection. These M9 male cable connectors have solder terminations and the cable housings have integrated strain relief.
Spec
- Quantity：1piece
- Number of Contacts : 8
- Mounting Type : Cable Mount
- Connector Size : Subminiature
- Termination Method : Solder
- Shell Size : 11.5mm
- Current Rating : 1A
- IP Rating : IP40
- Contact G***er : Male
- Voltage Rating : 125 V
- Mating Type : Screw On
- Body Orientation : Straight
- Series : 711
- Housing Material : Metal
- CODE No.:734-5410
