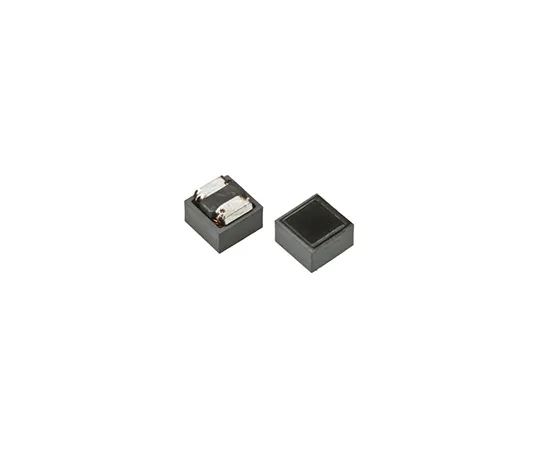

63-5026-88 Murata LQH66S Series Type 2225 (5664M) Wire-wound SMD Inductor 1 μH ±20% Wire-Wound 4.7A Idc LQH66SN1R0M03L
Product Description
Product Model: 63-5026-88Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5026-88
Product Brand: Murata
Features
- Murata 2525 LQH66S Series Wire Magnetically Shielded Wound Chokes. LQH66S series magnetic shielded inductors for choke applications, using high performance thick wirewound technology. Low direct current resistance, large current capacity and large inductance High density mounting For DC-DC converters and DC power supply circuits
Spec
- Quantity：1piece
- Inductance : 1 μH
- Maximum DC Current : 4.7A
- Package/Case : 2225 (5664M)
- Dimensions : 6.3 x 4.7 x 6.3mm
- Tolerance : ±20%
- Maximum DC Resistance : 13mΩ
- Series : LQH66S
- Maximum Self Resonant Frequency : 150MHz
- Minimum Operating Temperature : -40°C
- CODE No.:725-5333
