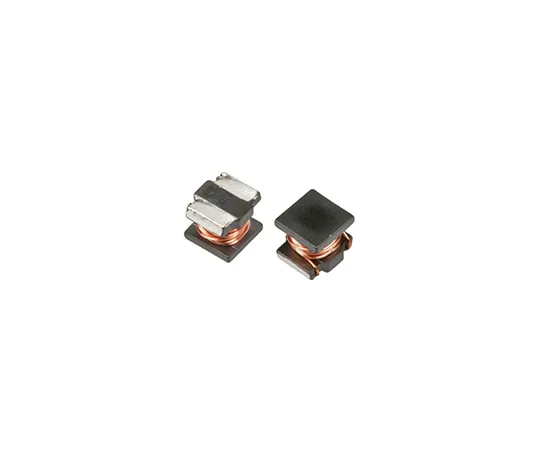

63-5026-87 Murata LQH55D Series Type 2220 (5650M) Wire-wound SMD Inductor 4.7 μH ±20% Wire-Wound 2.7A Idc LQH55DN4R7M03L
Product Description
Product Model: 63-5026-87Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5026-87
Product Brand: Murata
Features
- Murata 2220 LQH55D Series Wire Wound Chokes. LQH55D series wirewound inductors for choke applications using high performance thick wire wound technology. Low direct current resistance, large current capacity and large inductance For DC-DC converters and DC power supply circuits
Spec
- Quantity：1piece
- Inductance : 4.7 μH
- Maximum DC Current : 2.7A
- Package/Case : 2220 (5650M)
- Length : 5.7mm
- Depth : 5mm
- Height : 4.7mm
- Dimensions : 5.7 x 5 x 4.7mm
- Tolerance : ±20%
- Maximum DC Resistance : 41mΩ
- Series : LQH55D
- Maximum Self Resonant Frequency : 30MHz
- Minimum Operating Temperature : -40°C
- CODE No.:725-5311
