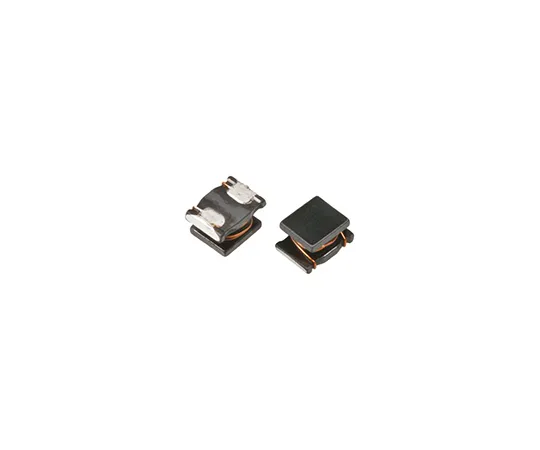

63-5026-79 Murata LQH43CN Series Type 1812 (4532M) Wire-wound SMD Inductor 470 μH ±10% Wire-Wound 90mA Idc LQH43CN471K03L
Product Description
Product Model: 63-5026-79Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5026-79
Product Brand: Murata
Features
- Murata 1812 LQH43CN Series Wire Wound Inductor. Coil inductors with ferrite core. High quality and low DC resistance. Low voltage drop and high temperature stability. Applications: Filtration inductor for switch mode power supplies.
Spec
- Quantity：1bag(10pieces)
- Inductance : 470 μH
- Maximum DC Current : 90mA
- Package/Case : 1812 (4532M)
- Length : 4.5mm
- Depth : 3.2mm
- Height : 2.6mm
- Dimensions : 4.5 x 3.2 x 2.6mm
- Tolerance : ±10%
- Maximum DC Resistance : 8.5Ω
- Series : LQH43CN
- Maximum Self Resonant Frequency : 3MHz
- Minimum Operating Temperature : -40°C
- CODE No.:725-5197
