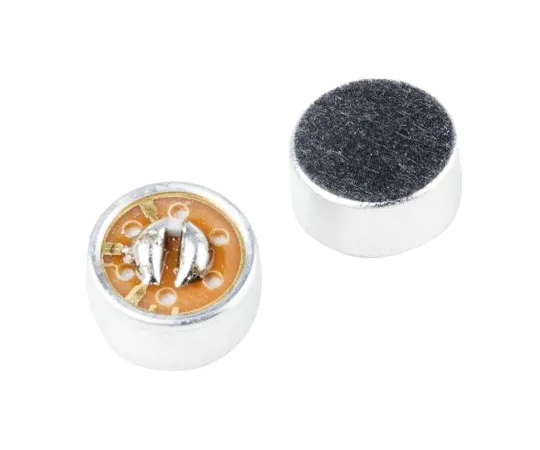

63-5026-19 RS PRO Uni-Directional 9.7mm Microphone Condenser, 100 → 10000 Hz -47dB 724-3147
Product Description
Product Model: 63-5026-19Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5026-19
Product Brand: RS PRO
Features
- Electret Microphone Inserts. Range of SMT and PCB mounting miniature electret condenser microphone inserts
Spec
- Quantity：1bag(2pieces)
- Sensitivity : -47dB
- Directivity : Uni-Directional
- Standard Operating Voltage : 2V
- Output Impedance : 2.2kΩ
- Signal to Noise Ratio : 58dB
- Maximum Supply Current : 0.5mA
- Dimensions : 9.7 (Dia.) x 5mm
- Diameter : 9.7mm
- Height : 5mm
- Maximum Frequency : 10kHz
- Maximum Operating Temperature : +70°C
- Minimum Frequency : 100Hz
- Minimum Operating Temperature : -20°C
- CODE No.:724-3147
