Electronic/Electrical Parts and Controll Equipments

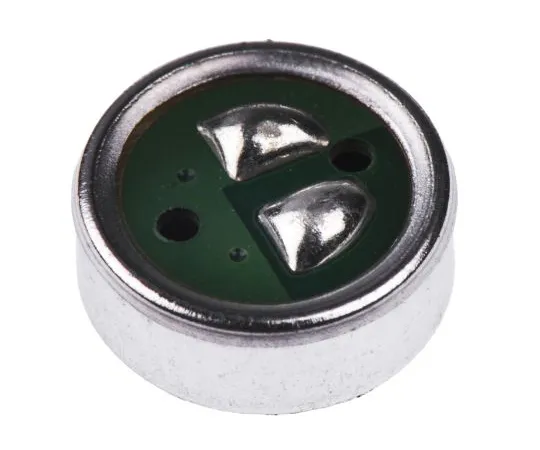

63-5026-16 RS PRO Uni-Directional 6mm Microphone Condenser, 50 → 16000 Hz -47dB 724-3138
Product Description
Product Model: 63-5026-16Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5026-16
Product Brand: RS PRO
Features
- Electret Microphone Inserts. Range of SMT and PCB mounting miniature electret condenser microphone inserts
Spec
- Quantity：1piece
- Sensitivity : -47dB
- Directivity : Uni-Directional
- Standard Operating Voltage : 2V
- Output Impedance : 2.2kΩ
- Signal to Noise Ratio : 58dB
- Maximum Supply Current : 0.5mA
- Dimensions : 6 (Dia.) x 2.2mm
- Diameter : 6mm
- Height : 2.2mm
- Maximum Frequency : 16kHz
- Maximum Operating Temperature : +60°C
- Minimum Frequency : 50Hz
- Minimum Operating Temperature : -20°C
- CODE No.:724-3138
