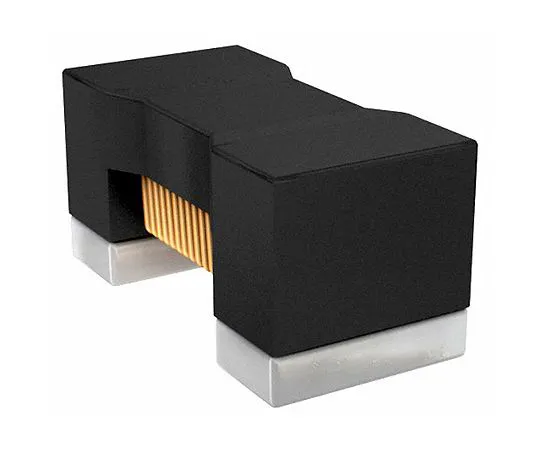

63-5025-96 Murata LQW18A Series Type 0603 (1608M) Wire-wound SMD Inductor 27 nH ±2% Wire-Wound 440mA Idc Q:40 LQW18AN27NG00D
Product Description
Product Model: 63-5025-96Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5025-96
Product Brand: Murata
Features
- Murata 0603 LQW18AN Series Wire Wound Inductors. High quality coil inductors designed for VHF and UHF applications. High resonance frequency. Low tolerance of inductance values. Models with the suffix '10D' have lower DC resistance values. Applications : High frequency circuits for wireless telecommunications equipment: Bluetooth, GSM, W-LAN.
Spec
- Quantity：1bag(10pieces)
- Inductance : 27 nH
- Maximum DC Current : 440mA
- Package/Case : 0603 (1608M)
- Length : 1.6mm
- Depth : 0.8mm
- Height : 0.8mm
- Dimensions : 1.6 x 0.8 x 0.8mm
- Tolerance : ±2%
- Maximum DC Resistance : 210mΩ
- Series : LQW18A
- Maximum Self Resonant Frequency : 3.7GHz
- Minimum Operating Temperature : -55°C
- CODE No.:724-2945
