Electronic/Electrical Parts and Controll Equipments

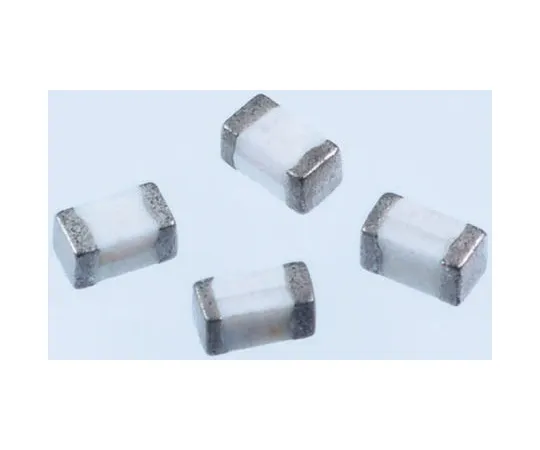

63-5025-75 Murata LQM18N Series 2.2 μH ±20% Ferrite Multilayer SMD Inductor, 0603 (1608M) Case, SRF: 80MHz 120mA dc 400mΩ Rdc LQM18FN2R2M00D
Product Description
Product Model: 63-5025-75Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5025-75
Product Brand: Murata
Features
- Murata 0603 LQQ18N Series High Frequency Chip Inductors. Monolithic inductors with ferrite core with a shielding screen which protects them from interference from peripheral components. Applications: resonance and filtration and self-shock circuits for telecommunications equipment.
Spec
- Quantity：1bag(25pieces)
- Series : LQM18N
- Inductance : 2.2 μH
- Tolerance : ±20%
- Maximum DC Current : 120mA
- Maximum Self Resonant Frequency : 80MHz
- Package/Case : 0603 (1608M)
- Maximum DC Resistance : 400mΩ
- Core Material : Ferrite
- Dimensions : 1.6 x 0.8 x 0.8mm
- Depth : 0.8mm
- Height : 0.8mm
- Length : 1.6mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- CODE No.:724-2706
