Electronic/Electrical Parts and Controll Equipments

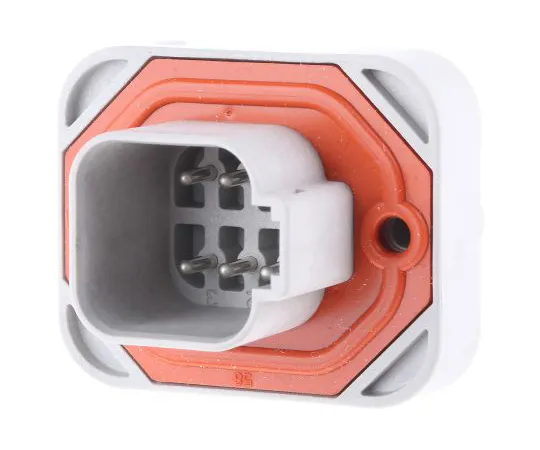

63-5025-65 Deutsch DT15, 6 Way, 2 Row, Straight PCB Header DT15-6P
Product Description
Product Model: 63-5025-65Product Brand: Deutsch Feature […]
Contact Us
Product Details
Product Model: 63-5025-65
Product Brand: Deutsch
Features
- Deutsch DT13/15 Series Connectors, PCB Headers. Deutsch DT13/15 series PCB header connectors are ideal for heavy duty rated electronic sensor and small module automotive connector applications. The DT13 feature 90 degree pins, the DT15 straight pins which are solid copper alloy with tin plating. The DT13/15 series mate with the Deutsch DT06 series connector plugs. Features and Benefits:. Environmentally sealed connector Rugged thermoplastic connector housing Operating temp range -55 to +125 °C Moulded in solid copper alloy contacts Mates with DT06 Series connector plugs
Spec
- Quantity：1piece
- Series : DT15
- Pitch : 4.44mm
- Number of Contacts : 6
- Number of Rows : 2
- Body Orientation : Straight
- Mounting Type : Panel Mount, Through Hole
- Termination Method : Solder
- Contact Plating : Nickel
- Voltage Rating : 1.5 kV ac
- CODE No.:724-2539
