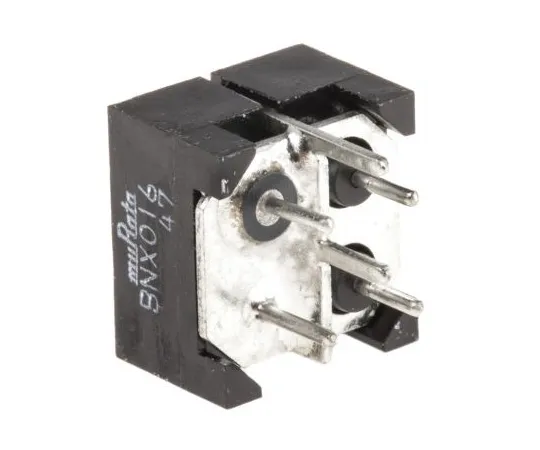

63-5025-20 Murata BNX Series 15A 25 V dc 100 kHz → 1 GHz Through Hole RFI Filter, with Pin Terminals BNX016-01
Product Description
Product Model: 63-5025-20Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5025-20
Product Brand: Murata
Features
- BNX 01 Filters Series. Block type "EMIFIL" BNX series filters incorporating a through-type a capacitor, monolithic chip capacitors and bead. The BNX Series high performance filter is for *** in DC power circuits. Features ; Benefits. Excellent noise suppression Wide frequency range High insertion loss High current No connection routes in the current circuits ensure high reliability and high performance Effective for impulse noise such as spike noise or electrostatic discharge. Product Application Information. Murata BNX power line filters are optimised for *** in DC power circuits. Suitable applications for BNX 01 filters include PC peripherals, am***ment equipment, LCD-TV and PDP displays, digital AV equipment and industry equipment.
Spec
- Quantity:1piece
- Maximum Current Rating : 15A
- Maximum Voltage Rating : 25 V dc
- Mounting Type : Through Hole
- Termination Style : Pin
- Series : BNX
- Operating Frequency : 100 kHz → 1 GHz
- Length : 12mm
- Depth : 11mm
- Height : 8mm
- Dimensions : 12 x 11 x 8mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +125°C
- CODE No.:724-1649
