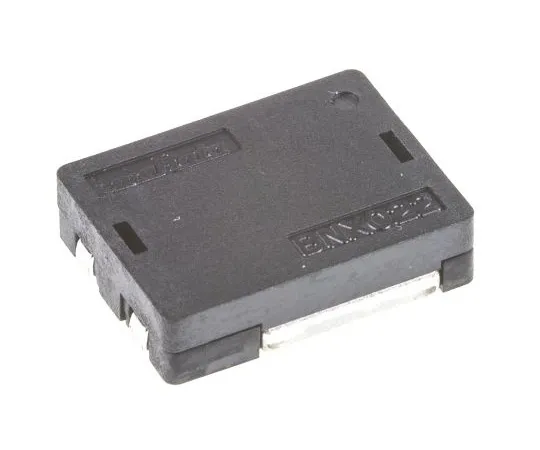

63-5025-18 Murata BNX02 Series Wire-wound SMD Inductor Wire-Wound 10A Idc BNX022-01L
Product Description
Product Model: 63-5025-18Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5025-18
Product Brand: Murata
Features
- BNX02 Series. High performance SMD EMI suppression filter, providing excellent noise suppression on DC power lines. Large rated current (10A - 15A) and Low DC Resistance. (0.43m ohm - Typ.) High insertion loss characteristic over a wide frequency range of 1MHz to 1GHz Mounting area and volume is reduced Effective for impulse noise such as electro-static discharge or spike noise. Applications include:. Displays (PDP/LCD-TV) Digital AV equipment Am***ment equipment PC peripheral equipment Industry equipment, measurement equipment, power supplies
Spec
- Quantity：1piece
- Maximum DC Current : 10A
- Length : 12.1mm
- Depth : 9.1mm
- Height : 3.1mm
- Dimensions : 12.1 x 9.1 x 3.1mm
- Maximum DC Resistance : 430µΩ
- Series : BNX02
- Maximum Operating Temperature : +125°C
- CODE No.:724-1643
