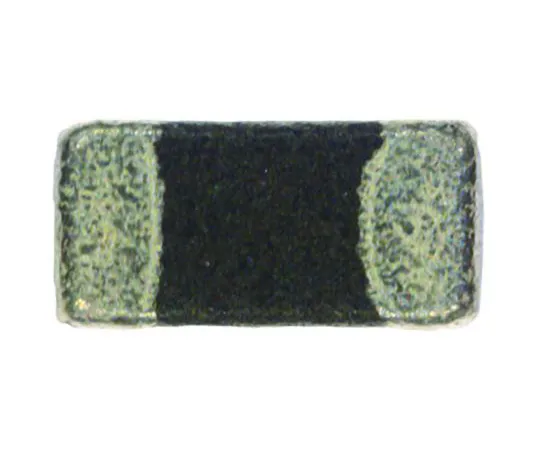

63-5024-66 Murata Ferrite Bead (Chip Ferrite Bead), 1.6 x 0.8 x 0.8mm (0603 (1608M)), 600Ω impedance at 100 MHz BLM18AG601SN1D
Product Description
Product Model: 63-5024-66Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5024-66
Product Brand: Murata
Features
- SMD 0603 Ferrite Filters- BLM18A Series. BLM series ferrite beads from Murata are ideal for *** in circuits with unstable ground lines as they do not require a ground connection. Excellent solder heat resistance is provided by the nickel barrier construction of the external electrodes. These ferrite beads are designed to function nearly as resistors at noise frequencies, leaving signal wave forms undistorted and reducing the possibility of resonance. This series of ferrite beads are suitable for general *** applications.
Spec
- Quantity：1bag(25pieces)
- Package Type : 0603 (1608M)
- Impedance at 100 MHz : 600Ω
- Current Rating : 500mA
- Type : Chip Ferrite Bead
- Dimensions : 1.6 x 0.8 x 0.8mm
- Length : 1.6mm
- Depth : 0.8mm
- Height : 0.8mm
- Material : Ferrite
- CODE No.:724-1299
