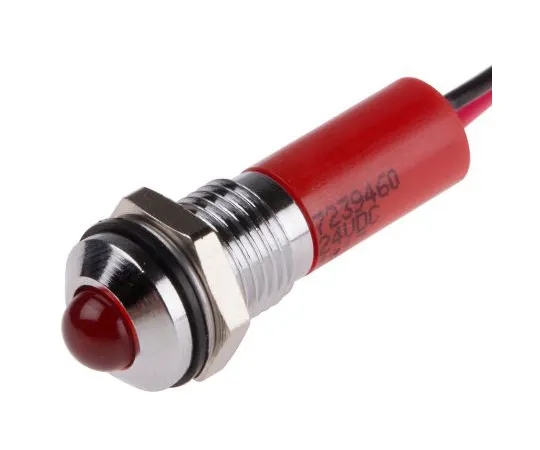

63-5024-04 RS PRO Red Indicator, 24 V dc, 8mm Mounting Hole Size, Lead Wires Termination, IP67 723-9460
Electronic/Electrical Parts and Controll Equipments

63-5024-04 RS PRO Red Indicator, 24 V dc, 8mm Mounting Hole Size, Lead Wires Termination, IP67 723-9460

model: 63-5024-04
brand: RS PRO

Product Description

Product Model: 63-5024-04Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5024-04
Product Brand: RS PRO

Features

  • UL. RS Pro 8 mm LED Indicators IP67. From RS Pro, these LED ‘s have been designed for panel mount applications and with an IP67 rating they are suitable for most environments including outdoor applications. They also have a wide operating temperature range of between -40 to +85 °C, further increasing the potential applications they may be ***d for. These 5 mm LED ‘s require an 8 mm panel cut-out and are supplied with a fixing nut and spring washer. They come with bright chrome bezels and offer a selection of voltage ratings and bezel styles. All models are highly reliable and excellent quality. Features and Benefits. 8 mm panel mounting LED indicator 5 mm coloured diff***d epoxy lens or 5 mm water clear super bright LEDs Bright chrome bezel Prominent, recessed and flush bezel styles 12 to 28 Vdc Wire terminations Sealed to IP67 Viewing angle: up to 100° Life expectancy: 100,000 hours Operating temperature range: -40 to +85 °C. What kind of protection do these indicators have?. Each LED Indicator is rated at IP67. Although not fully waterproof, it is fully protected from dust and other small particles. It can also be fully immersed in water (up to 1 m depth) for a maximum of 30 minutes. It would dep*** on the application as to how this feature would be ***d, but the LED would continue to operate smoothly if the above guidelines are followed correctly. Why choose LED?. Longevity and low power consumption are the main selling points of an LED. However, there are various other reasons to consider: Temperature - LED's give off a far cooler temperature than what an incandescent or neon light would. Direction - LED's will only emit light in a single direction, reducing the need for additional components, such as reflectors. Although this wouldn't apply if the LED indicator is being ***d as a circuit board signal. Cost - typically as LED's are in a larger supply than standard bulbs or pilot lights, they are a more cost effective solution to purchase, as well as run. These LED indicators should not be operated without a suitable series resistor or other current-limiting device. What are the ***s of an Indicator?. Uses of indicators fall entirely down to the ***r. They can be fixed to PCB circuit boards and mounted on push buttons and switches. Primarily, these types of indicators are ***d within circuit boards and electronic designs. This is due to their relatively small size, as compared with other types of indicators, such as car turn signals. Are there fixings supplied with these indicators?. Absolutely, each LED indicator is fully supplied with a fixing nut, washer and a gasket. To ensure a quick and easy installation process.

Spec

  • Quantity:1piece
  • Voltage Rating : 24 V dc
  • Light Output Colour : Red
  • Mounting Hole Size : 8mm
  • Lamp Type : LED
  • Lamp Size : 5 mm
  • Termination Type : Lead Wires
  • IP Rating : IP67
  • Bezel Style : Prominent
  • Bezel Colour : Chrome
  • Current Rating : 20 mA
  • Intensity : 50 mcd
  • Length : 22.5 mm
  • CODE No.:723-9460
