Features

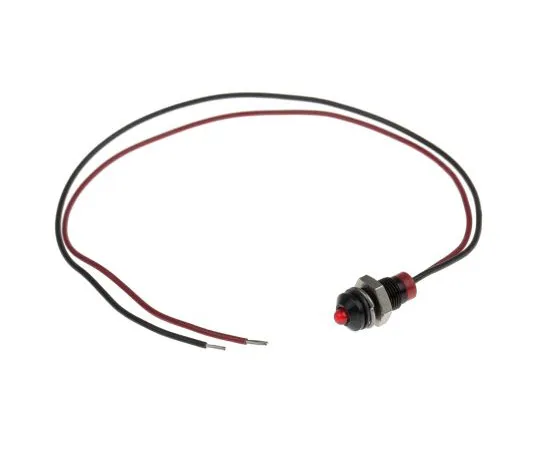

• UL. Fixing nut and spring washer. LED Indicators, 6mm Mount, Wires. These LED ‘s have been designed for panel mount applications and with an IP67 rating they are suitable for most environments including outdoor applications. They also have a wide operating temperature range of between -40 to +85 °C, further increasing the potential applications they may be ***d for. These 3mm LED ‘s require a 6mm panel cut-out and are supplied with a fixing nut and spring washer. They have a nominal 2 Vdc (no resistor) rating with an operational voltage Vop of 1.8 (min) to 2.5 (max) Vdc. Users can select from a variety of bezel finishes and bezel styles. 6mm panel mounting LED indicator 3mm coloured diff***d epoxy lens or 3mm water clear super bright LEDs Bright chrome, black chrome or satin grey bezel finish Prominent, recessed and flush bezel styles Wire terminations Voltage rating: 2 Vdc Sealed to IP67 Viewing angle: up to 100° Life expectancy: 100,000 hours Operating temperature range: -40 to +85 °C
