Features

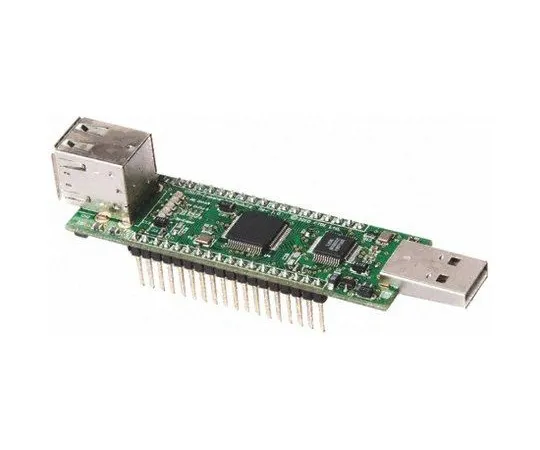

• USB Hi-Speed Serial/Hub Module. Designed to connect to FTDI ‘s V2DIPx modules, as well as any USB Host interface (e.g. PC) to expand the number of interfaces that can be accessed downstream from a Host USB 2.0 Hi-Speed compatible One standard Type A USB header to connect to the Host USB Hi-Speed FT4232H device for USB-Serial/Bitbang communications. Entire USB protocol handled by USB module USB 2.0 Hi-Speed hub controller integrated to support up to 3 downstream USB ports USB hub controller and FT4232H are USB bus powered – no external power supply needed External power input pin available to supply external downstream USB ports Support for USB susp*** and resume 4 Asynchronous serial interfaces available which include 2 indep***ent MPSSE engines Defaults to 4 RS-232 interfaces Asynchronous Serial data transfer rates from 300 baud to 12 Mbaud at TTL levels Synchronous Serial (MPSSE) data rates of up to 30Mbps on JTAG, SPI and I²C One dual-port USB A socket and 0.1 inch pitch header to support up to 3 downstream USB ports Green/Amber status LED for downstream USB port 2 ;3 LED indicating power supply to external downstream USB ports Onboard EEPROM 93LC56 for FT4232H configuration UHCI / OHCI / EHCI host controller compatible
