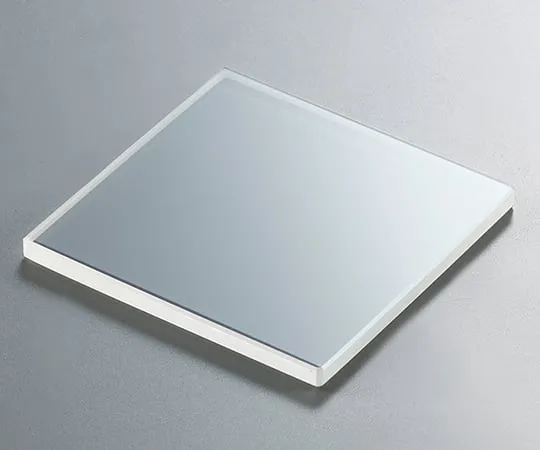

3-6942-01 Half Mirror 5 x 5 x 1.0mm Inconel TS-0802R
model:
3-6942-01
category:
frame
Product Description
Product Model: 3-6942-01 Features ＜Dielectric multi-lay […]
Contact Us
Product Details
Product Model: 3-6942-01
Features
- ＜Dielectric multi-layer on one side＞
- Divides incident light at 45° into transmittance and reflectance（at ratio of 50：50）*#*＃※＃*#*.
- The back is provided with antireflection coating.
- ＜Inconel＞
- Its metal vapor deposited film divides incident light at 45° into transmittance and reflectance（at ratio of 30：30）.
Spec
- Vertical x horizontal (mm): 5 x 5
- Medium thickness (mm): 1.0
- Coating: Inconel
- Material: B270
- Available wavelength: 400 - 700nm
- Substrate refractive index: 1.523/nd
- Chamfer (45°): All round, all edges
- Transmission
- Reflective ratio: 30: 30
- Reflective tolerance: When 550nm/ ±5%, When 400 - 700nm/ ±10%
- Tolerance range
- Outline: +0/-0.2mm
- Plate thickness: ±0.2mm
- Substrate parallelism: within 3 minutes (3′)
- Surface accuracy before coating: 2λ - 3λ (effective range: Including center within 85%)
- Surface quality: MIL60-40
- *Available capacity of branching in the ratio of the other (specially ordered item). Please contact us.
