Features

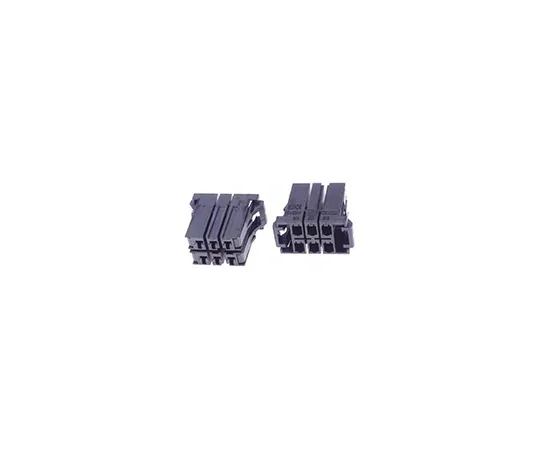

• For D-3000 Series Contacts see stock number ; 680-0988 680-0988 typically For mating D-3200 Series Headers see stock number ; 706-8047 706-8047 typical. TE Connectivity DYNAMIC D-3200S and D-3200M 5.08 mm High-Voltage Tab and Receptacle Housings. Dynamic D-3200 series tab and receptacle connector housings with a compact, vibration resistant design, a high-voltage capacity. The D-3200S versions have a standard single row configuration and the D-3200M have a modular dual row configuration. These D-3200 connector housings feature locking lances to secure the contacts into place and to prevent damage to them during mating. An audible click is produced to indicate that the contact is fully secured in the housing. These D-3200 crimp housings feature keying which prevents mismating and ribs that prevent movement or twisting between the housings when mated. Locking levers on either side of the cable mount housings provide a secure mating connection with an audible click as positive mating assurance. A fitting confirmation line on the housing provides additional visual confirmation. Crimp receptacle and tab contacts for these Dynamic D-3200 connector housings must be purchased separately. Features and Benefits. Compact, vibration resistant design Locking lances for secure contact retention Keying ribs to prevent mismating and movement Locking levers for secure mating connection Audible click for mating assurance Fitting confirmation line for visual mating assurance. Product Application Information. These DYNAMIC D-3200 connectors are suitable for *** in both signal and power circuits and power supply applications. When loaded with contacts these connectors are able to carry 15A maximum per contact per position
