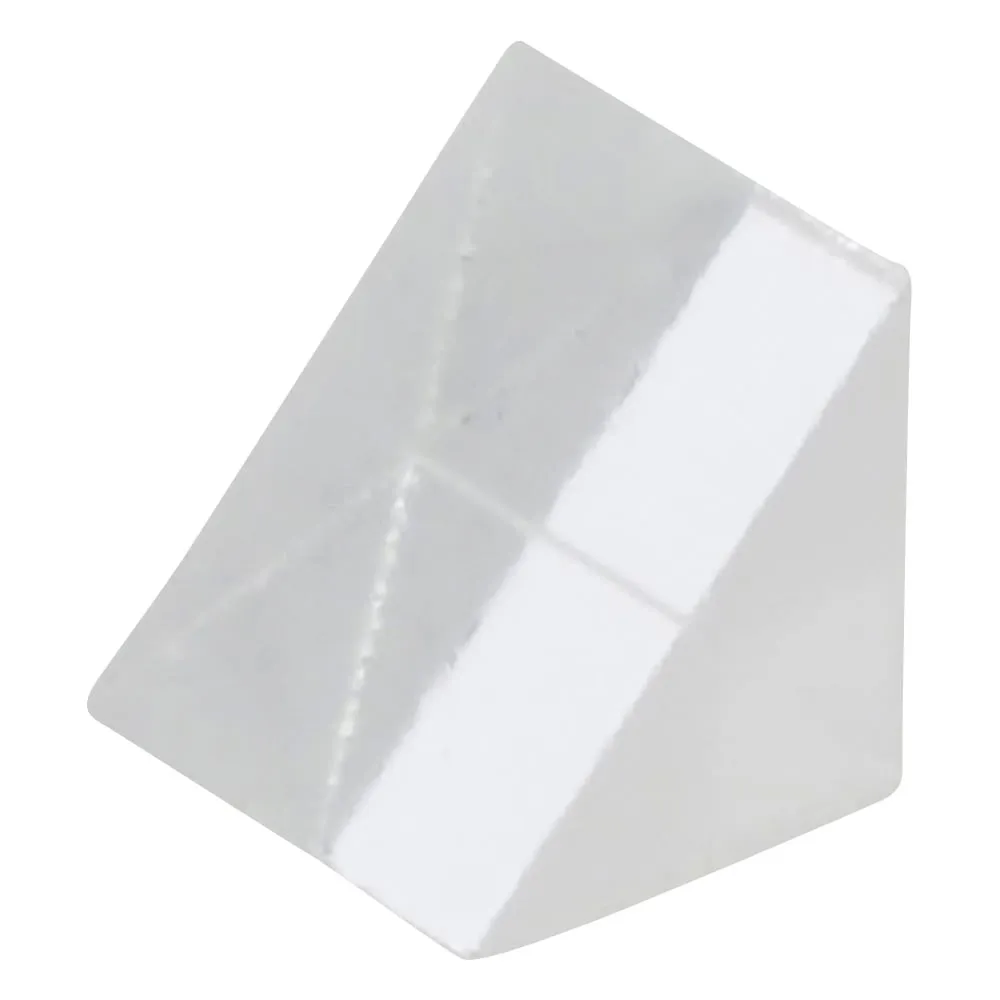

3-6941-01 90° Straight Angle Prism 2 x 2 x 2mm BK7 TS-0700P
model:
3-6941-01
category:
Analyzer, Testing Equipment
Product Description
Product Model: 3-6941-01 Features Redirects image by 90 […]
Contact Us
Product Details
Product Model: 3-6941-01
Features
- Redirects image by 90°which is vertically incident to right-angled surface.
- Image vertically incident to inclined surface reflects twice on right-angled surface to produce inverted image.
- Used to adjust angle of deflection angle of light and orientation of image.
Spec
- Size (mm): 2 x 2 x 2
- Material: BK7
- Design wavelength: 587.6nm
- Refractive index: 1.51680/nd
- Tolerance range
- Outline: φ±0.2mm
- Angle tolerance: ±3 minutes (3′)
- Surface accuracy: λ/2
- Surface quality: MIL60-40
