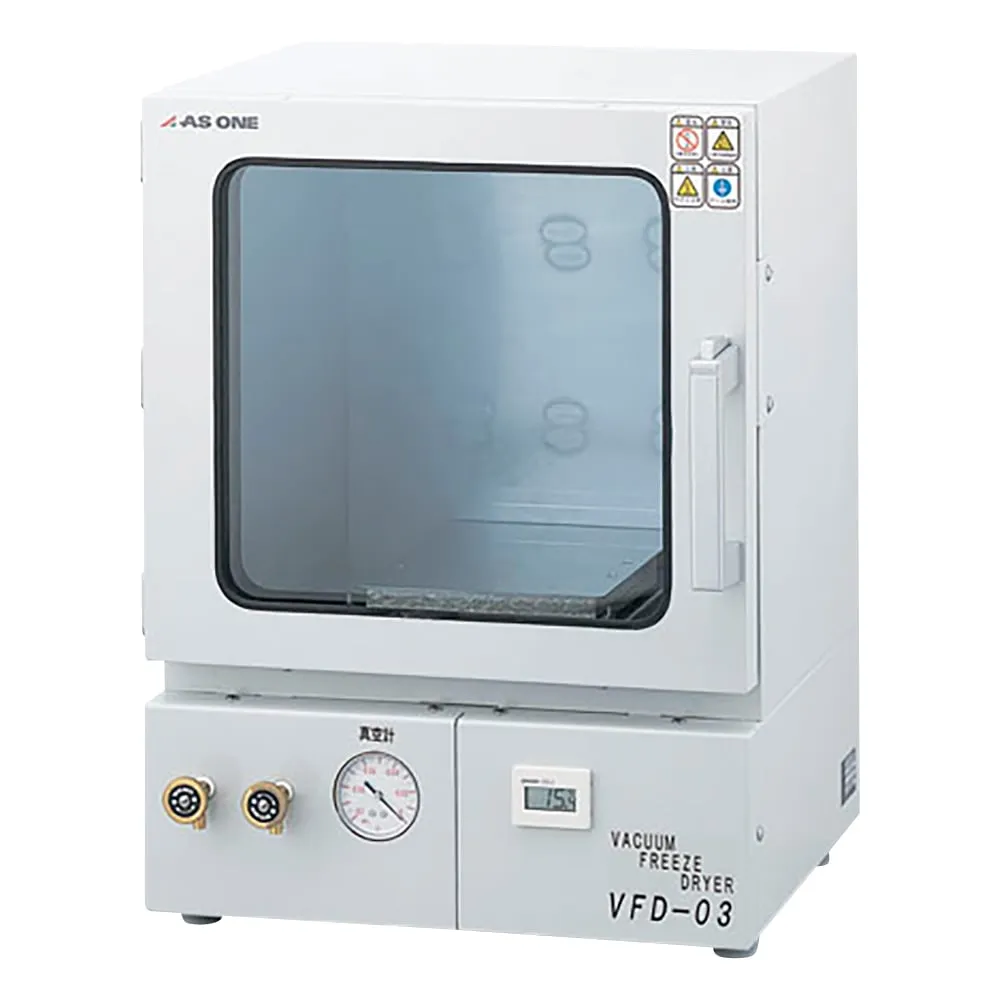

1-6098-01 Vacuum Freeze Dryer VFD-03
Product Description
Product Model: 1-6098-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-6098-01
Product Brand: AS ONE Corporation
Features
- Stay frozen in a cooling shelf cooled by a cooling water circulating device.
- The cooling shelf temperature can be controlled by the cooling water circulation device.
Spec
- Outer dimension (mm): 380 x 350 x 520
- Inner chamber dimension (mm): 300 x 300 x 285
- Cooling shelf temperature: -5℃ or less (dep***ing on cooling water temperature)
- Cooling shelf dimensions: 200 x 200 x 10mm
- Vacuum attainment level: 133Pa (1Torr)
- Vacuum room material: Stainless steel (SUS304)
- Observation window dimension: 280 x 270mm
- Vacuum valve hose nipple diameter: φ8mm
- Cooling water inlet and outlet diameter: φ9.5mm
- Weight: Approx 29kg
- Recomm***ed cooling water circulation apparatus: Cooling water circulation apparatus LTC-450A
- Recomm***ed pump: Oil-sealed rotary vacuum pump GCD-051
- *Cooling water circulation apparatus is required.
- Model number: VFD-03
