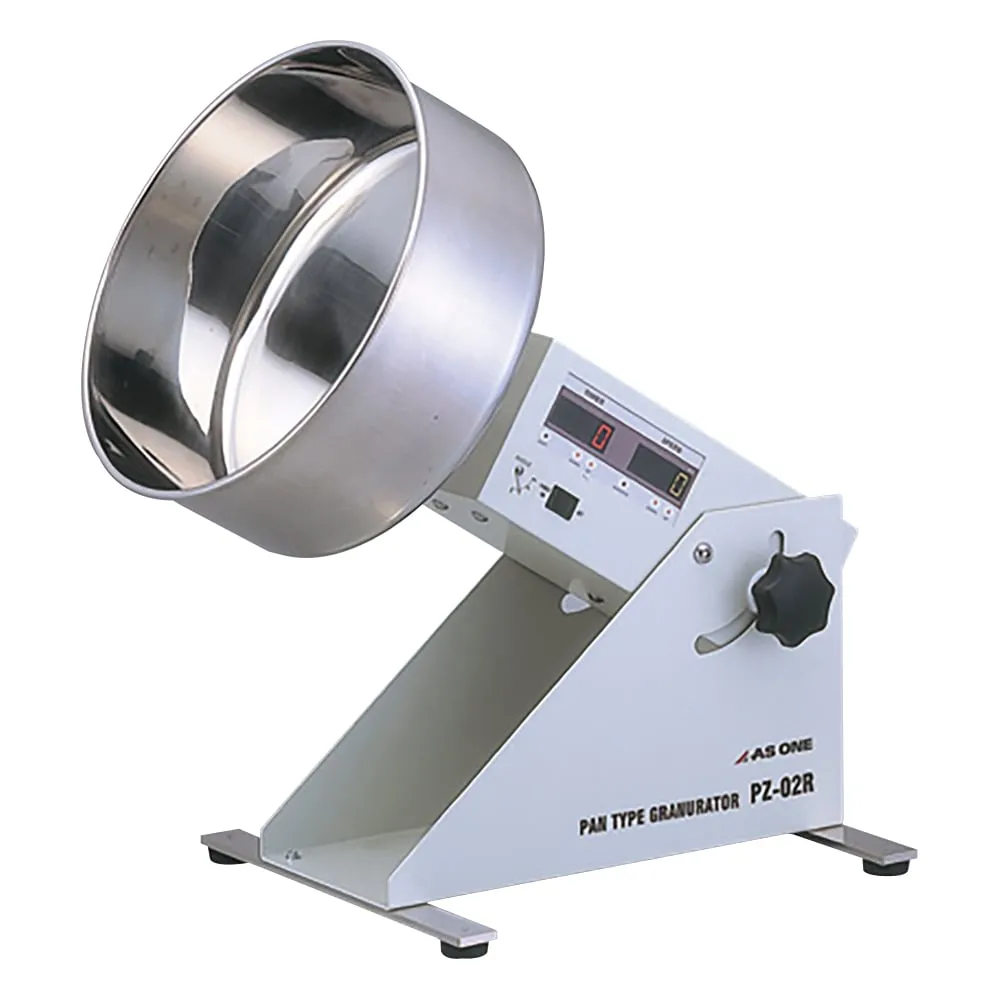

1-6061-11 Mid-Capacity Pan Pelletizer PZ-02R
Product Description
Product Model: 1-6061-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-6061-11
Product Brand: AS ONE Corporation
Features
- Medium capacity granulator with higher pan diameter, rotational torque and circumferential speed of pan granulator PZ-01R.
- Speed and timer can be set digitally and accurately.
Spec
- Size (mm): 480 x 313 x 590 (when 45° angle)
- Weight (kg): 9.4
- Pelletization method: Snowman method due to rotation (left rotation)
- Rotation speed: 20 - 112rpm
- Timer: 0 - 9 hours 59 minutes (1 minutes units)
- Material: Body/SPCC (steel plate) white leather tone coating, Pelletization container/stainless steel (SUS304)
- Safety device: Overcurrent protection, glass tube f*** 0.5A
- Pelletization container inner dimensions: φ300 x 120mm
- Obliquing angle: 90° (horizontal to vertical)
- Power supply: 100VAC 50/60Hz
- Power cord length: 2.5m
- Plug shape: 3P with ground pin (with conversion adapter)
- Processable amount: 1kg (when 45° angle)
- Motor: 10W
- Model number: PZ-02R
