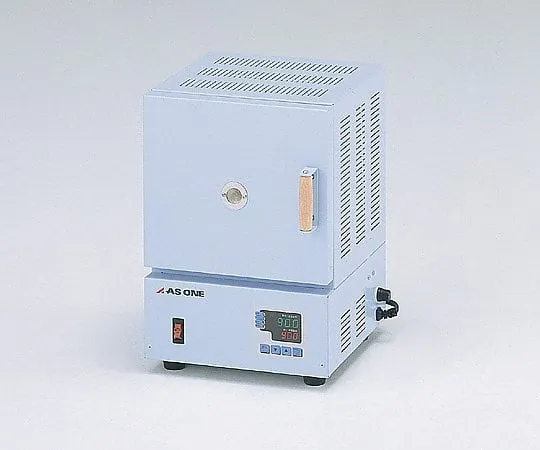

1-6032-01-28 Small Program Electric Furnace Furnace Inner Dimensions 120 x 150 x 100 mm with Pre-shipment Validation MMF-1
Product Description
Product Model: 1-6032-01-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-6032-01-28
Product Brand: AS ONE Corporation
Features
- Up to 4 patterns of 16 step programs can be set.
- It can be ***d for heat treatment and temperature test by PID control with high temperature control accuracy.
- It has a built-in safety circuit to shut off the heater in case of temperature abnormality, and a burnout function to detect sensor abnormality.
- Lightweight and compact, but designed to be wide inside the furnace.
- Allows you to set the temperature gradient.
- The *** of a four-sided heater reduces the temperature rise time.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature point: 1 point of 800 degrees Celsius
- External dimensions: 240 x 251 x 351 mm
- Inner furnace dimensions (mm): 120 x 150 x 100 (* Including sensor protrusions)
- Storage capacity (L): 2
- Temperature setting range: 100 ~ 900 degrees Celsius (normal: 800 degrees Celsius)
- Sensor: K thermocouple
- Control Method: PID Control
- Program functions: 16 steps and 4 patterns
- Temperature setting unit: 1 °Celsius
- Time setting units: 1 minute
- Exterior: Steel paint
- Interior: Ceramic Fiber
- Heater (4-sided heater): 800 W
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 2.8 m (3 P plug)
- Weight: 7 kg
- Accessories: Ceramic board tweezers (240 mm)
- This product can be inspected and inspected. Please contact us.
- *Inspection Certificate service is a service that carries out inspections of the control relation (measured temperature inside the wareho***, etc.) and the power engine personnel at the time of shipment or at the customer's site, and issues inspection documents.
- *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
