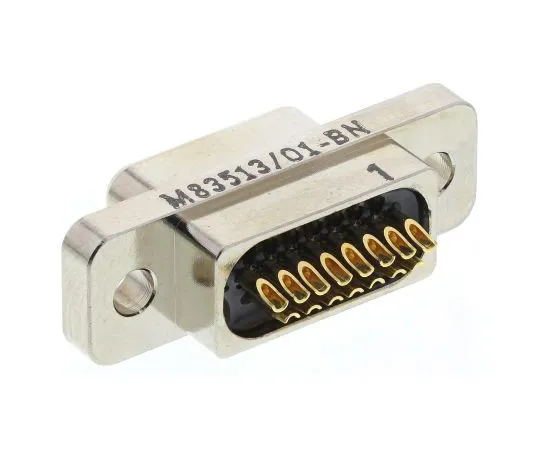

63-5016-68 Glenair M83513 Series Cable Mount, 15 Pin D-sub Connector Plug Micro-D M83513/01-BN
Product Description
Product Model: 63-5016-68Product Brand: Glenair Feature […]
Contact Us
Product Details
Product Model: 63-5016-68
Product Brand: Glenair
Features
- MIL-DTL-83513, BS9523F0002, BS9523F0013. MIL-DTL-83513, BS9523F0002, BS9523F0013. Glenair Micro D Connectors MIL-DTL-83513 , Solder Bucket. Glenair Micro D Solder Cup Connectors are military standard metal shell connectors ideally suited for making strong and reliable connections within environmental and EMI applications.The Micro D connectors solder cup contacts can accomodate 26 AWG solid or stranded wire. The LCP insulators resist damage from excessive soldering heat and the connectors are fully potted with epoxy resin. Electroless nickel plated metal shell Contact Current rating 3A max. Magnetic permeability 2.0 μΩ max. Operating temp -55 to +150 °C 500 mating cycles
Spec
- Quantity：1piece
- Number of Contacts : 15
- G***er : Male
- D Connector Type : Micro-D
- Mounting Type : Cable Mount
- Body Orientation : Straight
- Contact Plating : Gold
- Series : M83513
- Length : 23.75mm
- Depth : 7.87mm
- CODE No.:719-5896
