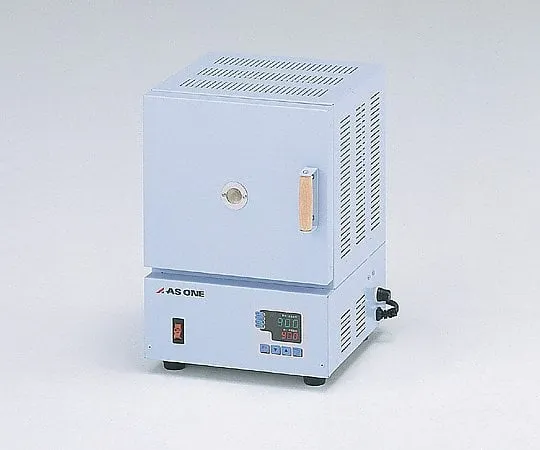

1-6032-01-22 Small Programmed Electric Furnace Furnace Internal Dimensions 120 x 150 x 100 mm Pre-shipment Inspection Certificate MMF-1
Product Description
Product Model: 1-6032-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-6032-01-22
Product Brand: AS ONE Corporation
Features
- Up to 4 patterns of 16 step programs can be set.
- It can be ***d for heat treatment and temperature test by PID control with high temperature control accuracy.
- It has a built-in safety circuit to shut off the heater in case of temperature abnormality, and a burnout function to detect sensor abnormality.
- Lightweight and compact, but designed to be wide inside the furnace.
- Allows you to set the temperature gradient.
- The *** of a four-sided heater reduces the temperature rise time.
Spec
- External dimensions: 240 x 251 x 351 mm
- Inner furnace dimensions (mm): 120 x 150 x 100 (* Including sensor protrusions)
- Storage capacity (L): 2
- Temperature setting range: 100 ~ 900 degrees Celsius (normal: 800 degrees Celsius)
- Sensor: K thermocouple
- Control Method: PID Control
- Program functions: 16 steps and 4 patterns
- Temperature setting unit: 1 °Celsius
- Time setting units: 1 minute
- Exterior: Steel paint
- Interior: Ceramic Fiber
- Heater (4-sided heater): 800 W
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 2.8 m (3 P plug)
- Weight: 7 kg
- Accessories: Ceramic board tweezers (240 mm)
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
- This product is compatible with the Validation Service (IQ/OQ). Please contact us.
- *Validation service is a service where installation qualification (IQ) and operational performance qualification (OQ) are performed and inspection documents are submitted at the customer's site.
