Spec

• Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
• Validate (FAT) before shipping.
• After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
• App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
• *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
• Temperature points: 3 37 degrees C, CO2 concentration

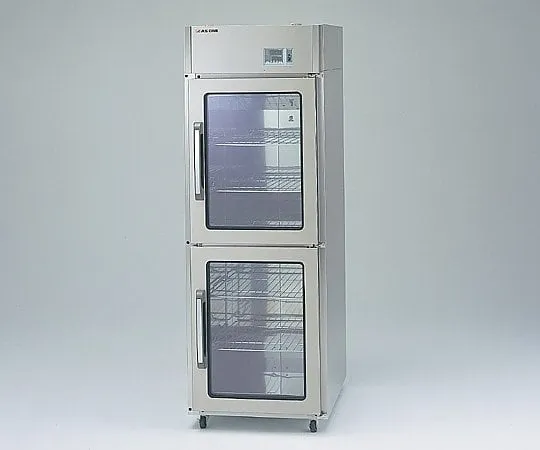

• Internal dimensions (mm): 460 x 585 x 1285
• External dimensions (mm): 600 x 835 x 1730
• Air jacket type natural convection system
• Temperature setting range: room temperature + 5 ~ 60 degrees C
• Temperature distribution width: +/- 1 °Celsius (37 °Celsius setting)
• Sensor: K thermocouple
• Temperature control: PID control/SSR output
• Timer function: ON/OFF/ON/OFF/SV start
• Timer setting range: 1 minute to 99 hours 59 minutes
• Heater capacity: 700 W
• Safety device: Overtemperature protection device/Overcurrent breaker
• Power supply: 100 VAC 50/60 Hz 8 A
• Power cord length: 3 m (2P plug)
• Exterior and Interior: Stainless Steel (SUS 430)
• Shelf Material: Steel Chrome Plating Finish
• Shelf load: 15 kg/piece (MAX)
• Caster: 50 mm (with stopper)
• Weight: 80 kg
• Accessories: 5 shelf boards
• *Shipping, carrying-in, installation and assembly costs are required separately. Please inquire.
• Local validation services (IQ/OQ) are also available.　Please contact us.
• *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
• *Wooden packaging (wooden frame, pallet, etc.) is ***d.
• *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
