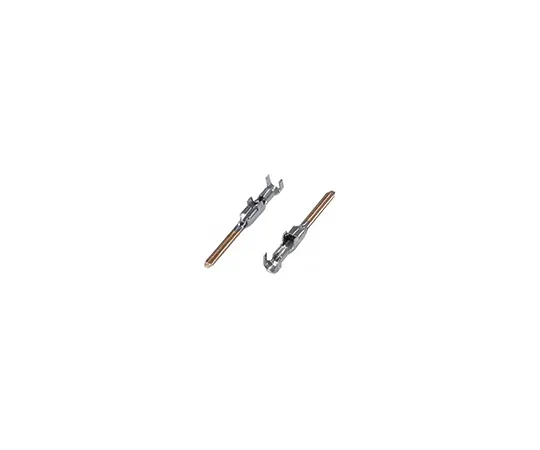

63-5015-88 TE Connectivity Dynamic 3000 Male Crimp Terminal Contact 16AWG 175286-3 175286-3
Electronic/Electrical Parts and Controll Equipments

63-5015-88 TE Connectivity Dynamic 3000 Male Crimp Terminal Contact 16AWG 175286-3 175286-3

model: 63-5015-88
brand: TE Connectivity

Product Description

Product Model: 63-5015-88Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5015-88
Product Brand: TE Connectivity

Features

  • TE Connectivity DYNAMIC D-3000 Series Contacts. DYNAMIC D-3000 series tab and receptacle contacts for use in DYNAMIC D-3000 series connector housings. These D-3000 series of contacts can be used in all housings in the same series and can conduct a high current of up to 15 A. When inserted into the housing a lance in the housing secures the contact into place and produces an audible click to confirm secure locking. The contact can also be easily removed using the correct tooling. The DYNAMIC D-3000 series terminals have a twist resistant box type receptacle and tab construction with 3 points of contact for increased electrical reliability. Two types of contact pressure are available for different applications; standard pressure for withstanding high numbers of insertions and withdrawals and high pressure for high vibration environments. These DYNAMIC D-3000 series crimp contacts are available with tin or gold plating to meet a range of applications. Features and Benefits. High current capacity of 15A Twist resistant box style design 3 point contact design for electrical reliability Standard and high pressure versions Tin and gold plating options. Applications. The DYNAMIC D-3000 connector series is used in combined signal and power applications in industrial machinery

Spec

  • Quantity:1bag(50pieces)
  • Gender : Male
  • For Use With : Dynamic 3000 Connector Housing
  • Series : Dynamic 3000
  • Minimum Wire Size mm² : 0.5mm²
  • Termination Method : Crimp
  • Contact Plating : Gold
  • Maximum Wire Size AWG : 16AWG
  • CODE No.:719-4672
