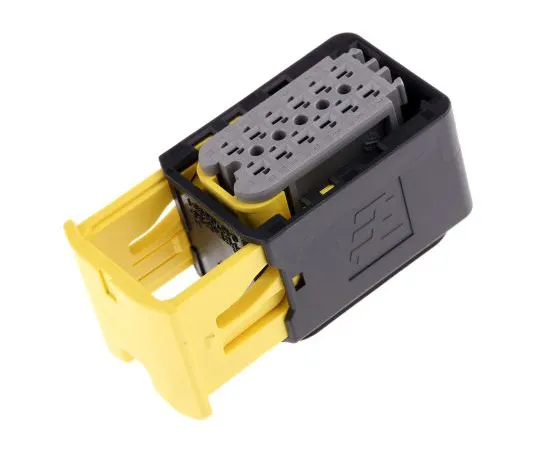

63-5015-39 TE Connectivity HDSCS Series, 2 Row 12 Way Cable Mount Socket Automotive wire connector, with Crimp Termination Method 2-1703639-1
Electronic/Electrical Parts and Controll Equipments

63-5015-39 TE Connectivity HDSCS Series, 2 Row 12 Way Cable Mount Socket Automotive wire connector, with Crimp Termination Method 2-1703639-1

model: 63-5015-39
brand: TE Connectivity

Product Description

Product Model: 63-5015-39Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5015-39
Product Brand: TE Connectivity

Features

  • TE Connectivity HDSC Sealed MCP 1.5K Receptacle Housings. HDSCS MCP 1.5K sealed automotive receptacle housings designed to withstand high vibration and mechanical stress. These HDSCS receptacle connector housings feature integrated secondary locks which conform contact alignment and retention producing an audible click when in the fully locked position. A slide lock assists with the mating and unmating process and provides a secure mating connection. The housings feature polarization and keying to prevent mismating and have a low mating force. These HDSCS MCP 1.5K connector housings are designed to accept AMP MCP 1.5K contacts with an SWS (single-wire-sealing-system) which must be ordered separately. Features and Benefits. Highly reliable and durable design High vibration resistance IP67 protection against dust and water Integrated secondary locking device Slide locking mechanism for secure mating Polarization and keying Low mating force. Applications. These HDSCS connectors are for *** in wire to wire electronic and electrical applications in motor vehicles where there are high levels of vibration. Applications include a range of industrial and commercial vehicles including truck, bus, off-road, construction, agriculture, mining, emergency vehicles, forestry, recreational, marine and motorcycles

Spec

  • Quantity:1piece
  • Number of Contacts : 12
  • Type : Automotive wire connector
  • G***er : Female
  • Number of Rows : 2
  • Mounting Type : Cable Mount
  • Series : HDSCS
  • Colour : Black, Grey
  • Termination Method : Crimp
  • Height : 30.8mm
  • Width : 25.7mm
  • Depth : 54.1mm
  • Minimum Operating Temperature : -40°C
  • CODE No.:719-4165
