63-5014-87 TE Connectivity Dynamic 2000 Female Crimp Terminal Contact 18AWG 1318105-1 1318105-1
model:
63-5014-87
brand:
TE Connectivity
Product Description
Product Model: 63-5014-87Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5014-87
Product Brand: TE Connectivity
Features

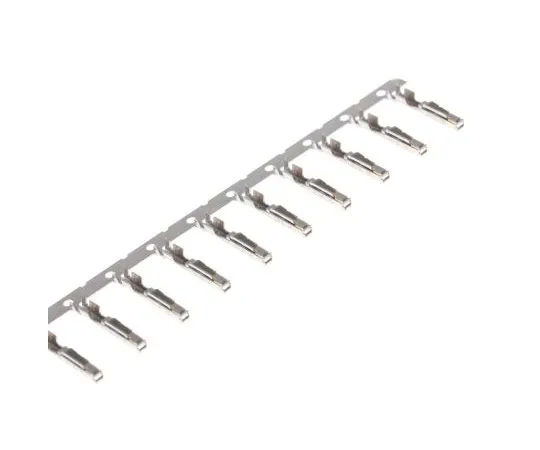

- TE Connectivity DYNAMIC D-2000 Series Crimp Contacts. DYNAMIC D-2000 series tab and receptacle contacts for use in DYNAMIC D-2100 series connector housings. When the contact is inserted into the housing a lance inside the housing secures it into place and produces an audible click to confirm secure locking. The contact can also be easily removed using the correct tooling. These DYNAMIC D-2000 series contacts have a twist resistant box type construction with 3 points of contact for increased electrical reliability. A long contact wiping length provides the high electrical reliability needed when used in industrial machinery. Features and Benefits. Twist resistant box style design 3 point contact design for electrical reliability Long contact wiping length. Product Application Information. DYNAMIC D-2100 connectors are suitable for use in most industrial signal applications.
Spec
- Quantity:1bag(25pieces)
- Gender : Female
- For Use With : Dynamic 2000 Connector Housing
- Series : Dynamic 2000
- Minimum Wire Size mm² : 0.3mm²
- Termination Method : Crimp
- Contact Plating : Gold
- Maximum Wire Size AWG : 18AWG
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +105°C
- CODE No.:719-0422
