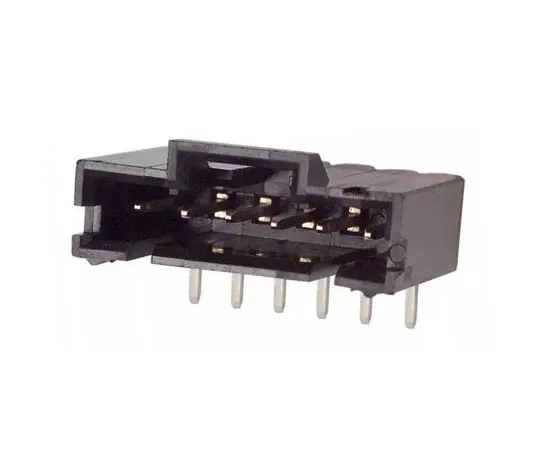

63-5014-64 TE Connectivity AMPMODU MTE, 6 Way, 1 Row, Right Angle PCB Header 5-103635-5
model:
63-5014-64
brand:
TE Connectivity
Product Description
Product Model: 63-5014-64Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5014-64
Product Brand: TE Connectivity
Features
- TE Connectivity 2.54 mm AMPMODU MTE PCB Headers with Latching. AMPMODU MTE right angle mount PCB headers for use with MTE IDC receptacle connectors to mass terminate wires in a wide variety of applications. These AMPMODU MTE headers are end to end stackable and feature an integral latching system which provides a secure mating connection with the IDC receptacle connector. Versions of these AMPMODU MTE PCB headers are available with hold-downs for a secure connection to the PCB. Features and Benefits. Allow cost saving mass termination of wires when used with IDC connectors End to end stackable Integral latching mechanism for secure mating connection Versions available with hold-downs for secure PCB retention. Applications. These AMPMODU MTE PCB headers are suitable for mass terminating wires in a wide range of electronic equipment. Applications include computers, telecommunications, copiers, commercial printers, appliances, instrumentation and test equipment medical equipment and automotive controls
Spec
- Quantity:1piece
- Series : AMPMODU MTE
- Pitch : 2.54mm
- Number of Contacts : 6
- Number of Rows : 1
- Body Orientation : Right Angle
- Shrouded/Unshrouded : Shrouded
- Mounting Type : Through Hole
- Termination Method : Solder
- Contact Material : Brass
- Current Rating : 3A
- CODE No.:719-0068
