Electronic/Electrical Parts and Controll Equipments

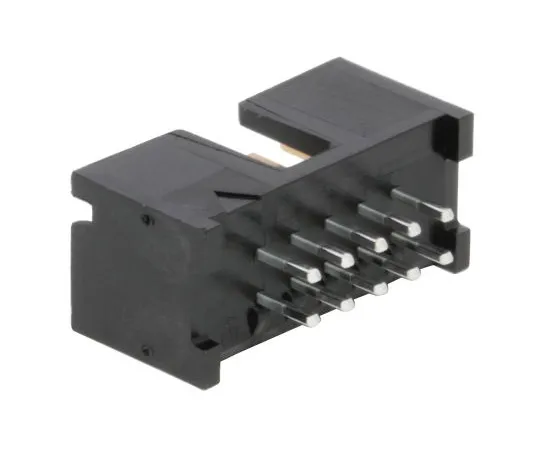

63-5014-62 TE Connectivity AMP-LATCH, 10 Way, 2 Row, Straight PCB Header 103309-1
model:
63-5014-62
brand:
TE Connectivity
Product Description
Product Model: 63-5014-62Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5014-62
Product Brand: TE Connectivity
Features
- TE Connectivity AMP-LATCH 2.54mm PCB Headers, Centre and Dual Polarized. AMP-LATCH PCB header connectors with a 2.54 x 2.54 mm centreline and a low profile design. These AMP-LATCH headers have a centre polarizing slot and double bar polarization slots for accurate mating with the IDC ribbon cable connector. The housings are made from flame retardant 94V-0 rated thermoplastic and feature board standoffs to allow excess flux removal from the PCB. Versions of these AMP-LATCH low profile headers feature kinked soldertails for a secure connection to the PCB. Features and Benefits. Low Profile design Centre and dual polarization slots Flame retardant 94V-0 thermoplastic housings Board standoffs Versions available with kinked solder tails. Applications. These AMP-LATCH PCB headers are suitable for use in a wide range of applications. Applications include, PCs, business equipment, medical equipment, storage, networking, industrial controls, appliances and electrical testing
Spec
- Quantity:1piece
- Series : AMP-LATCH
- Pitch : 2.54mm
- Number of Contacts : 10
- Number of Rows : 2
- Body Orientation : Straight
- Shrouded/Unshrouded : Shrouded
- Mounting Type : Through Hole
- Termination Method : Solder
- Type : Wire to Board
- Current Rating : 1A
- CODE No.:719-0002
