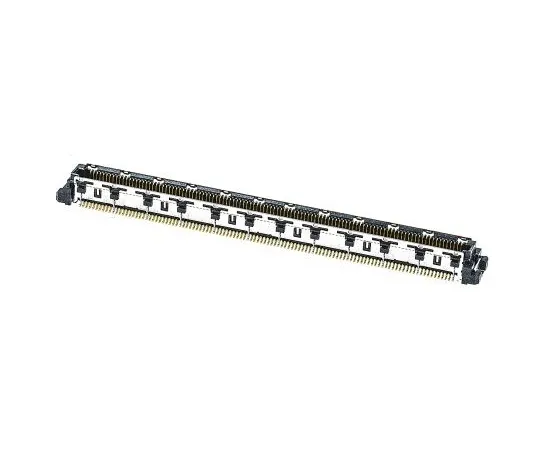

63-5014-42 TE Connectivity Free Height, 220 Way, 2 Row, Straight PCB Header 3-1827253-6
Electronic/Electrical Parts and Controll Equipments

63-5014-42 TE Connectivity Free Height, 220 Way, 2 Row, Straight PCB Header 3-1827253-6

model: 63-5014-42
brand: TE Connectivity

Product Description

Product Model: 63-5014-42Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5014-42
Product Brand: TE Connectivity

Features

  • TE Connectivity 0.5 mm FH (Free Height) Connectors. 0.5 mm FH (Free Height) 2 piece open pin field connector system designed for parallel board to board stacking applications. These 0.5mm FH plug and receptacle connectors provide a PICMG COM Express standard interface between embedded modules and carrier cards. The high density 0.5 mm pitch of these FH connectors results in a small footprint and offers PCB space saving. The housings of these 0.5mm FH connectors feature polarization to prevent mismating and PCB solder pegs provide a secure retention on the PCB. The 0.5mm FH receptacle connectors have ground contacts and the plugs have giga ground shields. These 0.5mm FH connectors are available in 4mm, 5mm and 8mm heights, which, when combined can create a range of PCB spacing. Features and Benefits. PICMG COM Express standard interface High density PCB space saving 0.5 mm pitch Polarized housings to prevent mismating Solder pegs for secure retention to PCB Grounding contacts and shields. Product Application Information. These 0.5mm FH connectors are ideal for downsizing applications that require high density parallel stacked PCBs. Applications include home security devices, consumer electronics, data storage devices, telecommunications, customized PCB boards and industrial computing devices.

Spec

  • Quantity:1piece
  • Series : Free Height
  • Pitch : 0.5mm
  • Number of Contacts : 220
  • Number of Rows : 2
  • Body Orientation : Straight
  • Mounting Type : Surface Mount
  • Termination Method : Solder
  • Contact Material : Copper Alloy
  • Voltage Rating : 50 V ac
  • CODE No.:718-9226
