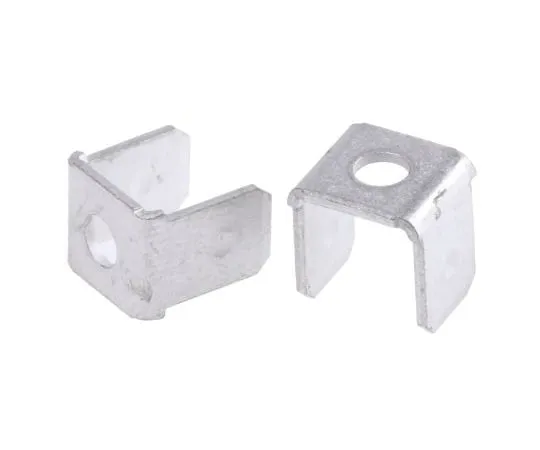

63-5014-01 TE Connectivity FASTON .250 Series , 90° Mount Angle Stud Mount Tab Terminal, 6.35 x 0.81mm Tin Plated 41480
Electronic/Electrical Parts and Controll Equipments

63-5014-01 TE Connectivity FASTON .250 Series , 90° Mount Angle Stud Mount Tab Terminal, 6.35 x 0.81mm Tin Plated 41480

model: 63-5014-01
brand: TE Connectivity

Product Description

Product Model: 63-5014-01Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5014-01
Product Brand: TE Connectivity

Features

  • TE Connectivity FASTON 250 Stud Mount Tab Terminals. FASTON 250 stud mount tab terminals designed specifically for quick connections with FASTON 250 series receptacles. When ***d with correct tooling these FASTON 250 stud mount tab terminals can be applied speedily to conductors. The crimping dimensions of these FASTON 250 terminals are precisely controlled providing all connections with excellent performance and uniform reliability. These stud mount tabs are mounted using rivets or screws through stud holes and are available in 90 °, angled and straight configurations offering wide design flexibility. Features and Benefits. Quick application to conductor with *** of correct tooling Precisely controlled crimping dimensions for uniform reliability Range of mounting angle options for design flexibility. Applications. These FASTON 250 stud mount tab terminals are commonly ***d in the appliance and automotive industry. Other applications include computer and peripheral equipment, industrial controllers, test equipment and telecommunications equipment.

Spec

  • Quantity:1bag(25pieces)
  • Series : FASTON .250
  • Insulation : Uninsulated
  • Tab Size : 6.35 x 0.81mm
  • Mount Angle : 90°
  • Contact Plating : Tin
  • Contact Material : Brass
  • Overall Length : 8.89mm
  • CODE No.:718-7882
