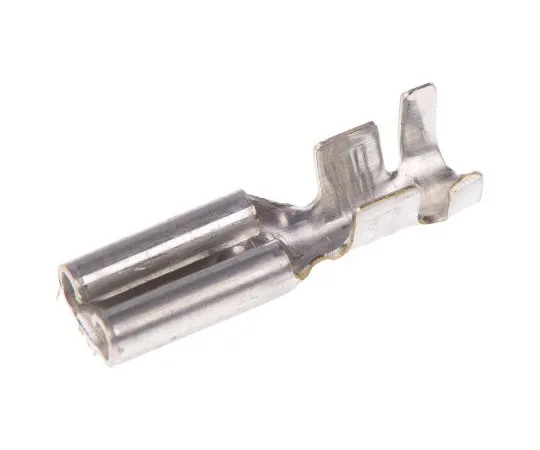

63-5013-98 TE Connectivity FASTON .110 Series Crimp Receptacle, 2.79 x 0.5mm, 0.5mm² to 1.5mm², 20AWG to 15AWG, Tin Plated 180437-2
model:
63-5013-98
brand:
TE Connectivity
Product Description
Product Model: 63-5013-98Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5013-98
Product Brand: TE Connectivity
Features
- TE Connectivity FASTON 110 Series Crimp Receptacles. FASTON 110 series quick connect crimp receptacle terminals that offer speed of application and uniform reliability. Experience over widespread segments of industry has proved this crimp to be the most effective way of assuring stable electrical and mechanical performance. These FASTON 110 receptacle terminals have a step down insulation support barrel to compensate for insulation thickness. Tapering walls at the rear of these FASTON 110 receptacles prevent over insertion of shoulderless tabs. Each FASTON terminal has precisely controlled crimping specifications which allow all connections to perform as specified. To achieve the optimum combination of mechanical strength and electrical conductivity *** match-mated application crimp tooling which can be purchased separately. The "F" style crimp terminations offer precise tensile strength and conductivity that lasts the life of the circuit. This method of termination also offers maximum resistance to vibration and corrosion. Features and Benefits. Quick application to conductor with *** of correct tooling Precisely controlled crimping specifications for uniform reliability Stable electrical and mechanical performance Precise tensile strength and conductivity Maximum resistance to vibration and corrosion. Applications. These FASTON 110 crimp receptacles are commonly ***d in the appliance and automotive industry. Other applications include computer and peripheral equipment, industrial controllers, test equipment and telecommunications equipment.
Spec
- Quantity:1bag(50pieces)
- Series : FASTON .110
- Insulation : Uninsulated
- Minimum Wire Size mm² : 0.5mm²
- Maximum Wire Size mm² : 1.5mm²
- Minimum Wire Size AWG : 20AWG
- Maximum Wire Size AWG : 15AWG
- Tab Size : 2.79 x 0.5mm
- Length : 13.4mm
- Contact Plating : Tin
- Contact Material : Brass
- CODE No.:718-7845
